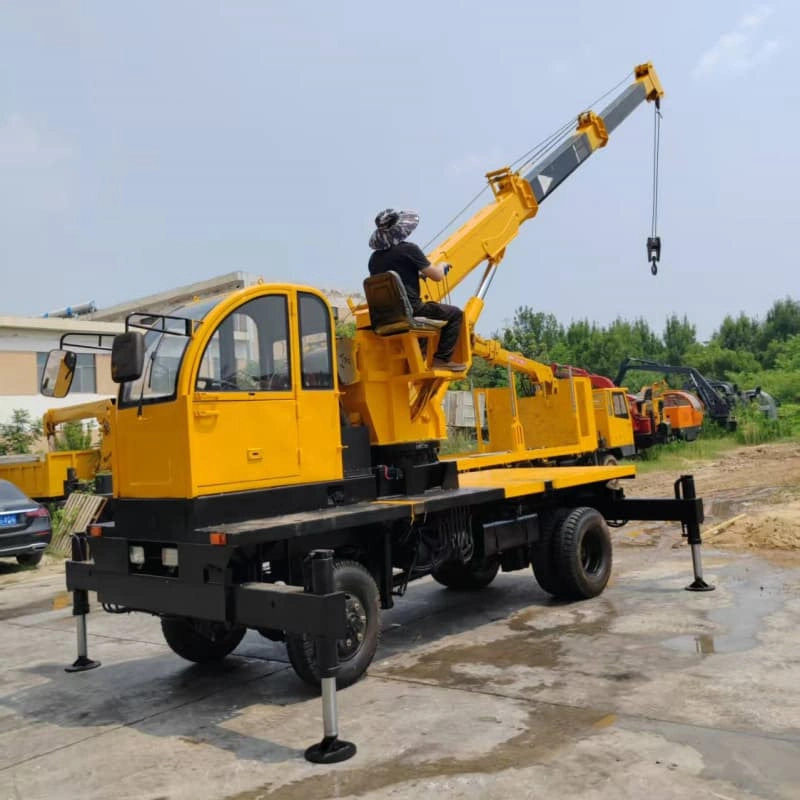

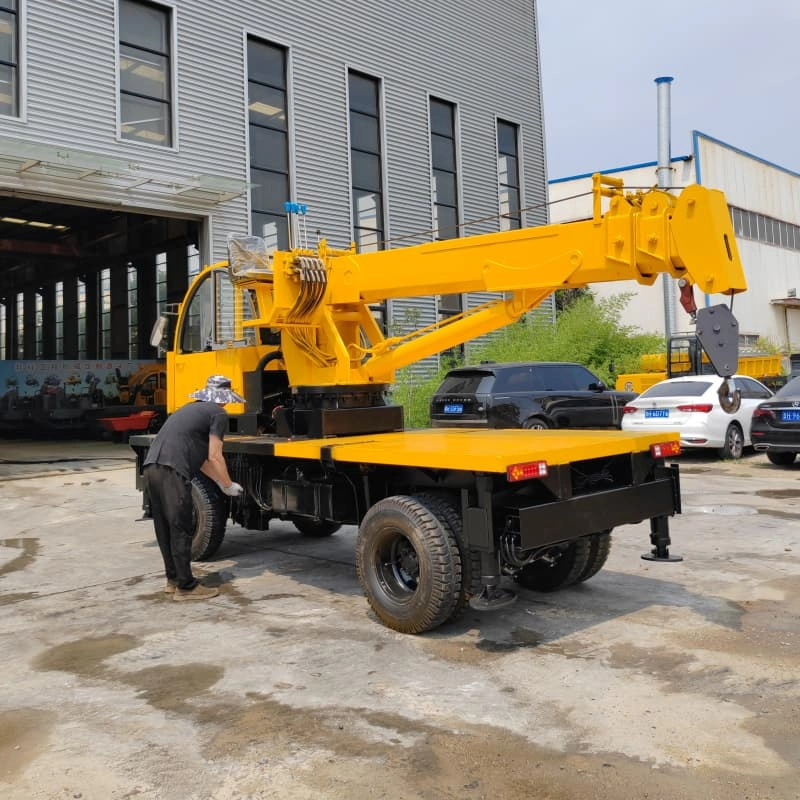

5 Ton Truck Mounted Telescopic Crane

This mobile crane is designed for medium-load scenarios, combining versatility and reliability, with its robust structure and user-friendly features being particularly prominent. It is made of Q345 manganese steel, which has excellent rigidity and wear resistance. It can be easily transferred between locations without relying on external transportation tools. Its compact size allows flexible movement in narrow areas, enhancing adaptability to job sites. The 3-ton working load meets most medium-intensity needs. It is very suitable for small and medium-sized enterprises in the fields of construction, logistics or municipal maintenance.

Contact Now E-Mail Telephone WhatsApp

Product Details

When you need a piece of equipment that can easily navigate narrow workshops, quickly respond to on-site lifting needs, and stably handle 3-ton daily loads, this hydraulic telescopic boom mobile crane is the answer — with its solid strength and flexible design, it redefines the efficiency standard for small and medium-sized lifting operations.

Its core structure is fully made of Q345 manganese steel. This high-strength steel, with a tensile strength of 345MPa, boasts far superior wear resistance and deformation resistance compared to ordinary materials.

Equipped with a built-in high-pressure hydraulic system, the boom extends/retracts and the lifting positioning proceed smoothly without jitter, allowing even novices to get the hang of it quickly. The low-noise design ensures it won’t disturb residents or workers when operating in residential areas or factories, while its energy-efficient feature helps you save on long-term fuel costs, making it both efficient and economical.

As a mobile device, it comes with its own "wheels" — no need for additional truck transportation. It can directly head to construction sites, logistics warehouses, rural yards, and even municipal maintenance spots. Its compact size combined with flexible steering enables easy access to urban alleys and workshop corners, truly achieving "ready to work upon arrival".

From workshop loading/unloading to outdoor installation, from narrow spaces to remote sites, this crane, with its four major highlights of "strength, stability, flexibility, and cost-effectiveness", makes every lifting operation efficient and worry-free.

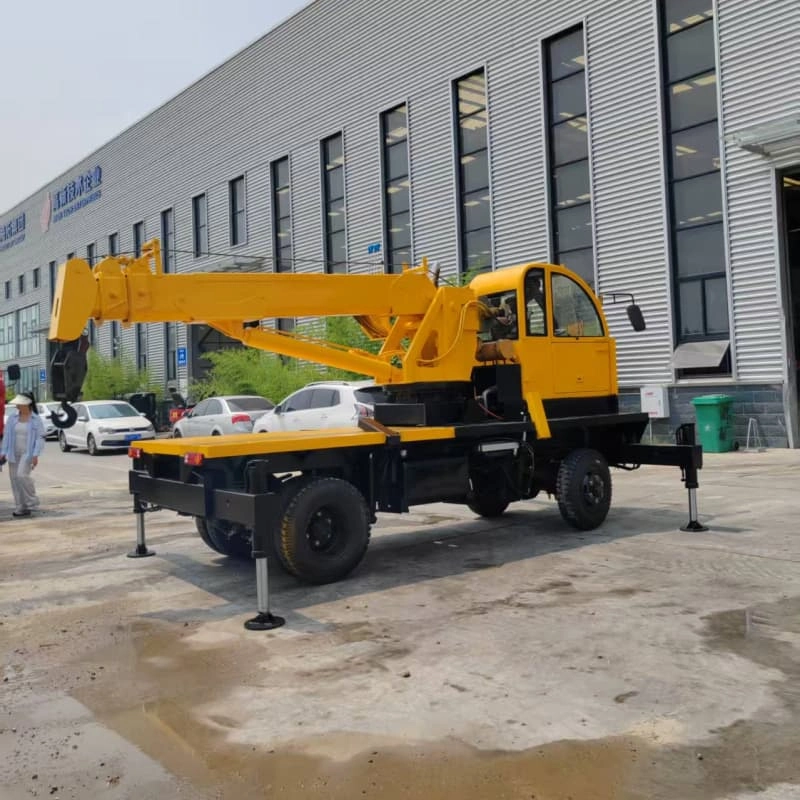

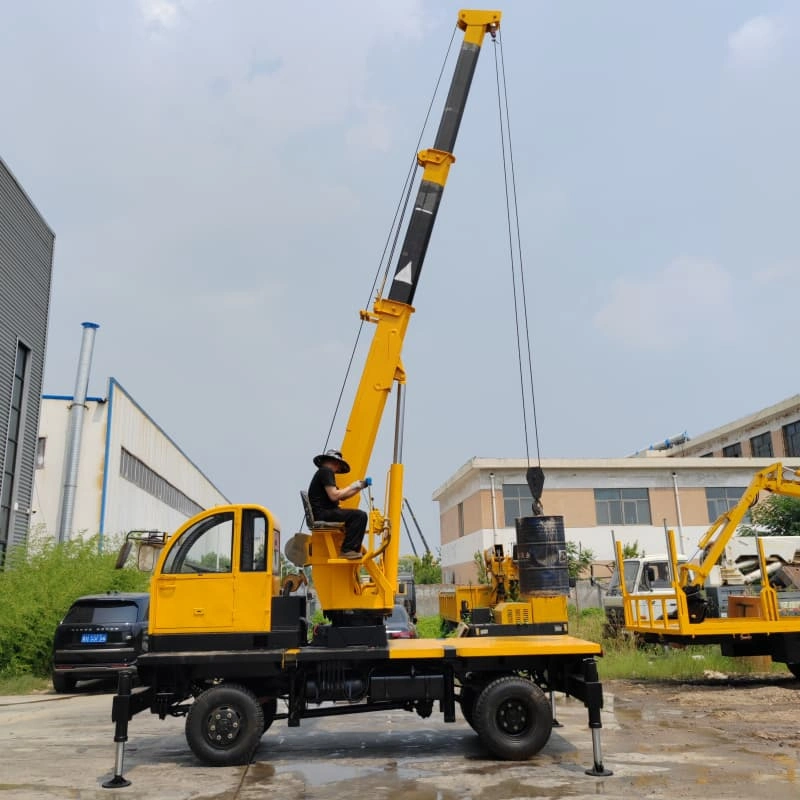

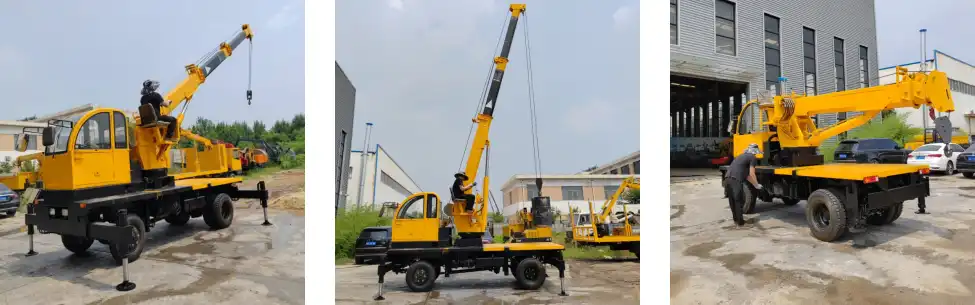

5 Ton Truck Mounted Telescopic Crane

Parameters

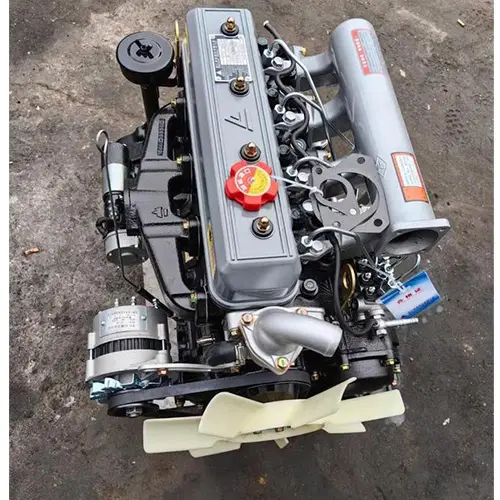

Engine Model	YUCHAI 490
Engine Power/Rpm	58kw/ 2400r/Min
Transmission Model	WLY 545 Transmission
Gear Level	5+1 Gears with high and low speed
Front Axle Model	2050
Rear Axle Model	1069
Driving Method	Four-wheel drive
Tire Model	750-16
Cabin Size (lwh)	30002000500mm
Unloading Method	Hydraulic dump
Turn	Hydraulic Power Steering
Braking Method	Disconnecting Air Brake
Driving Position	Left-Hand Drive (Right-Hand Drive Optional)
Driver's Cab	Foton Cab
Crane	3 Tons Crane

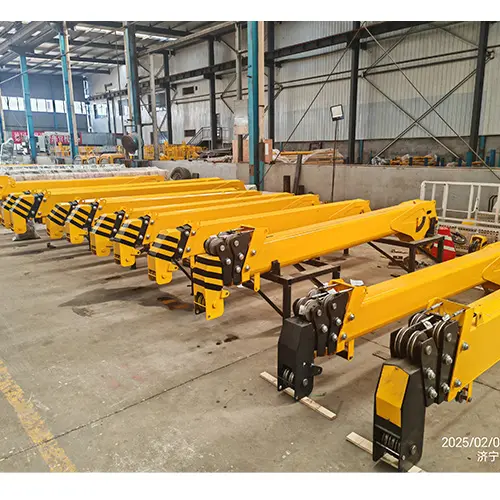

Boom	3 M, 3 Sections
Maximum Lifting Height	10 m
Operating Position	Lower Operation (Optional Upper Operation)
Slewing Support	600mm
Swivel Angle	360°
Maximum Lifting Weight	3 Tons
