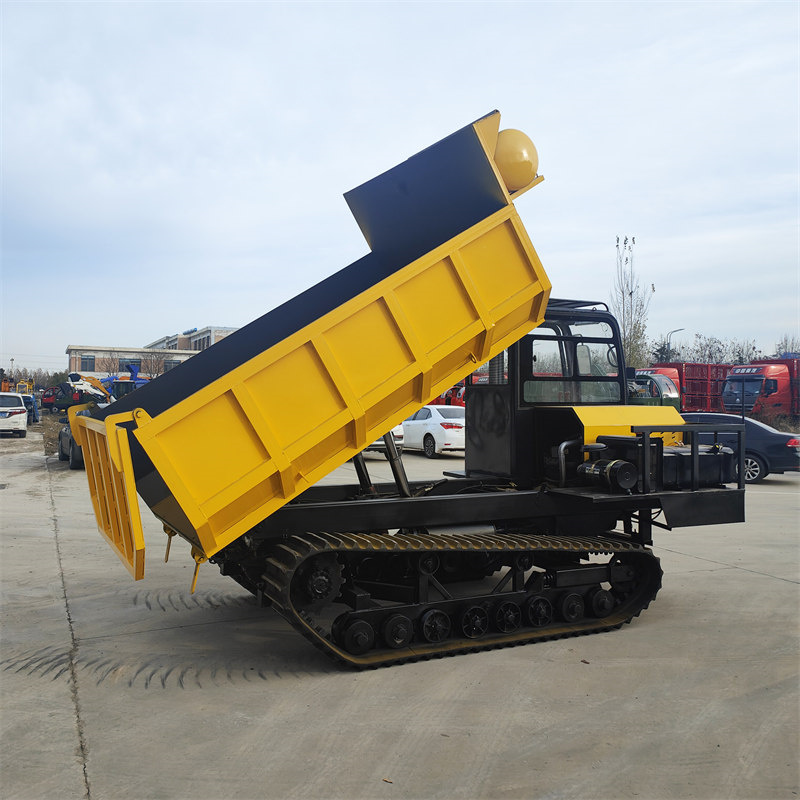

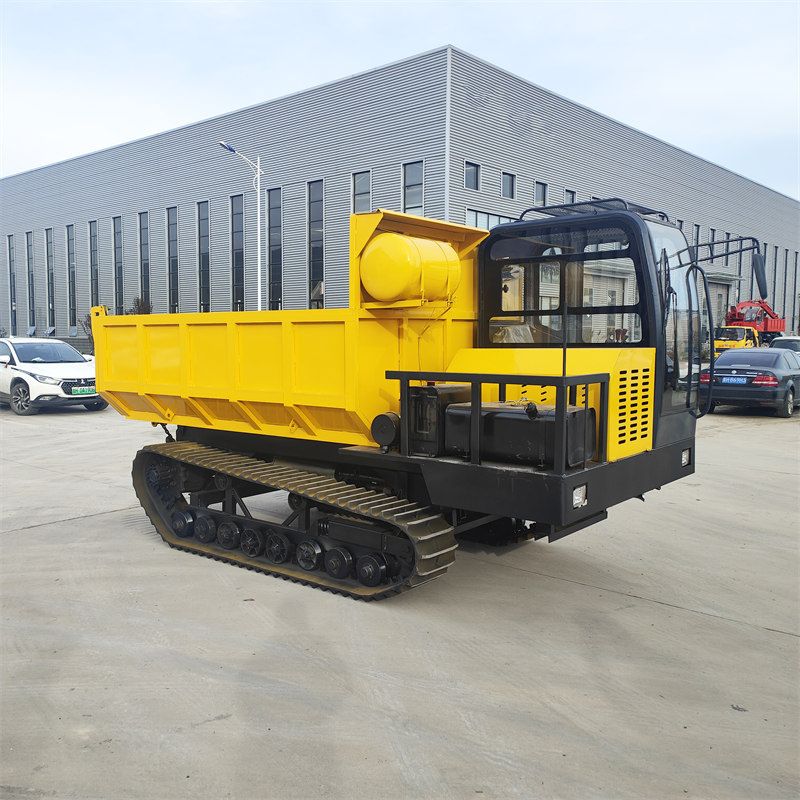

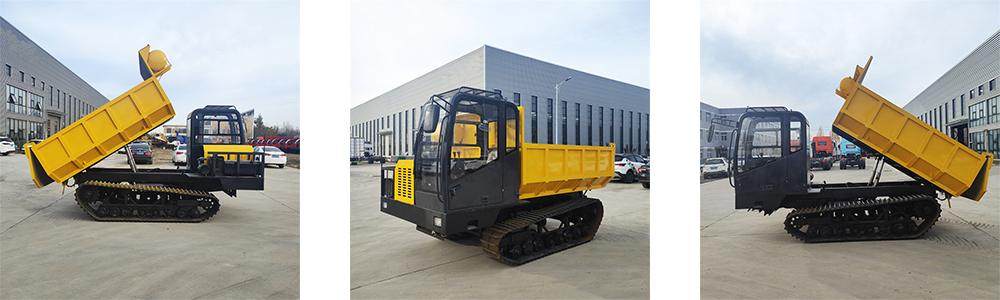

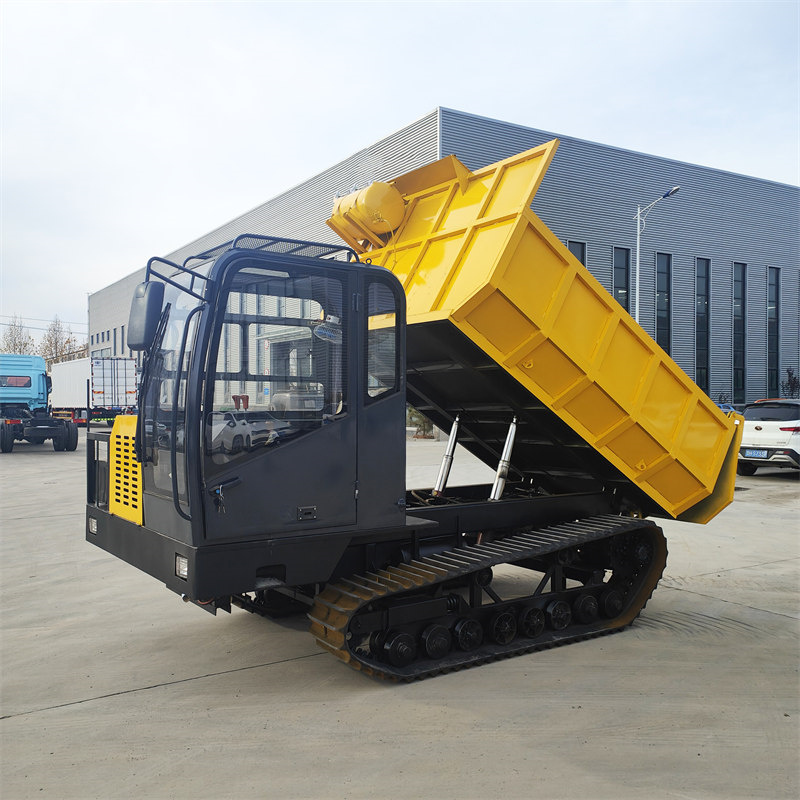

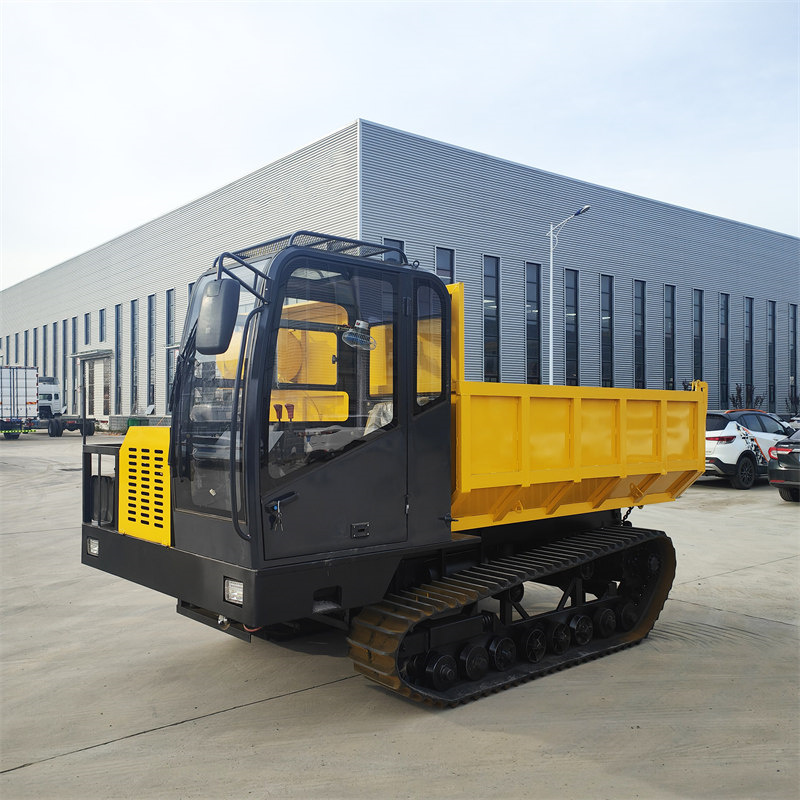

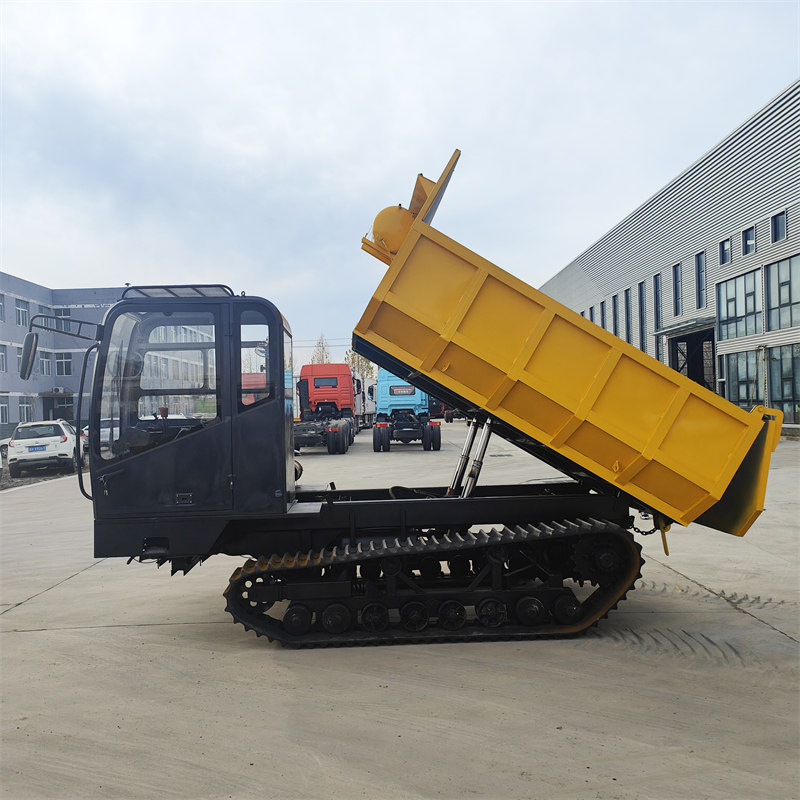

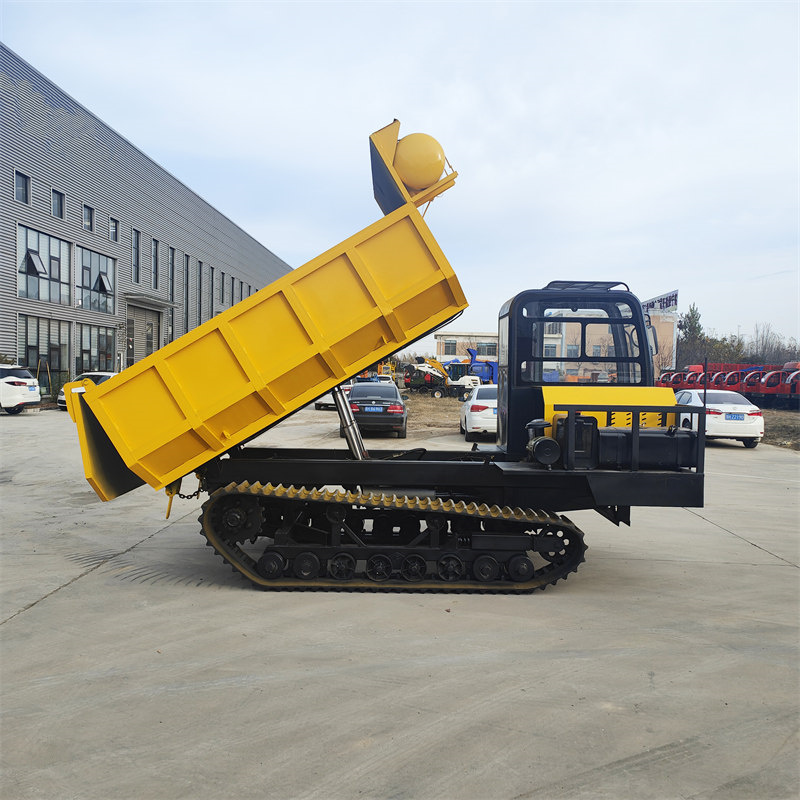

8 Ton Tracked Dump Truck
Outstanding Passability: The tracked chassis design makes it exert low pressure on the ground. It can travel stably on soft or complex terrains such as sandy areas, muddy grounds and snow-covered areas. It has a strong ability to cross obstacles and can adapt to various working conditions, like transportation needs in agricultural and forestry orchards, freight yards, water conservancy construction, infrastructure projects, mines and other sites.
Efficient Transportation: The carrying capacity of the 8-ton tracked dump truck can meet the needs of most medium-sized projects and material transfer requirements. The self-unloading function is well-developed, with a reasonable lifting angle and high speed, enabling quick loading and unloading of materials, reducing the operation cycle time and improving the overall transportation efficiency.
Durable and Long-lasting: The body is made of high-strength alloy steel, which is resistant to wear, impact and corrosion. Key components have undergone special treatment to extend their service life, reducing the cost of frequently replacing equipment and the downtime. Economical and Practical: The structural design is compact and reasonable. The power system and hydraulic system are optimally matched, resulting in low fuel consumption and energy consumption. Daily maintenance is simple and convenient, with low maintenance costs and a high return on investment.
Welcome to visit our factory. Customization is available according to your needs.
Outstanding Terrain Adaptability
It can travel on complex and harsh road conditions such as paddy fields, swamps, muddy roads, rugged mountain roads, soft grasslands, mountain forests, deserts, ice surfaces and snow-covered areas. It can be widely used in transportation in agricultural and forestry orchards, loading in freight yards, water conservancy construction, infrastructure projects, mines and other sites.
Excellent Load-bearing and Traction Capabilities
Equipped with a high-horsepower engine, it has powerful driving force. The carrying capacity of 8 tons can meet the transportation needs of most projects. The ground pressure of the crawler is low, it has a strong grip, large traction force and good performance in climbing and gripping the ground. It can travel smoothly on steep slopes and other complex terrains, demonstrating strong transportation capabilities.
Flexible Maneuverability
It has a small turning radius, is highly maneuverable, and is suitable for working environments with narrow spaces and complex terrains. It can reduce the cost of road construction.
Reliable Durability
The support wheels, guide wheels and drive wheels are made of high-strength alloy steel, which has good wear resistance and a long service life.
Convenient Operation and Maintenance
It is equipped with an electric starting system. The structure is simple, the transmission is stable, and the operation is concentrated on the handle, which is convenient and labor-saving. It is also easy to achieve automatic control.
Parameters
Track specifications
Engine Model | Yunnei 4105 Supercharged Engine |
Engine Power | 76kw |
Emission Standard | Euro 2 (345 Optional) |
Transmission Model | Wanliyang 145 Gearbox |
Gear | 5+1 Gears With Air Push High And Low Speeds |
Rear Axle Type | 153 |
Track specifications | 400*90*68 |
Car size | 2600*2000*500mm (Support Customization) |
Brake Mode | Car brake |
Steering Mode | pole-typeturn |
Unloading Mode | Hydraulic Tipping Bucket Tipping |
driving cab | Single Closed Cab |
Traveling Speed | 0-30km/h |
Climbing Angle | 35° |
Starting Method | Electric Start |
Battery | 24v |
Details
Thickened engineering rubber tracks. |
|
| Crawler chassis with floating solid wheels, not afraid of mud road, hydraulic tensioning crawler, goodbye to frequent crawler falling off. |
Brand engine |
|
