4 Ton Crawler Dump Truck
The 4-ton crawler dump truck is newly launched with great fanfare! Thanks to its all-terrain crawler design, it can move as easily as walking on flat ground in muddy areas, mountainous regions, and on steep slopes. It can effortlessly handle construction projects, agricultural and forestry transportation, as well as mining operations! With an extra-large cargo box and powerful engine, it has strong load-bearing capacity and high efficiency! Customization is supported, and the product is directly delivered from stock.
Our factory supports customization. The products are directly dispatched from stock, and you can enjoy worry-free after-sales service!
Here comes a blockbuster new product! This 4-ton crawler dump truck is meticulously designed to tackle the challenges of transportation in complex terrains. Equipped with an all-terrain crawler system, it's as if the vehicle has been endowed with powerful off-road capabilities. Whether it's getting stuck in a swamp, climbing a mountain, or speeding across a rugged construction site, it can move as smoothly as walking on flat ground. From the bustling construction sites to the vast agricultural and forestry operation areas, and then to the complex mining sites, it can effortlessly handle all these scenarios, truly deserving the title of the "All-round King" in the field of engineering transportation.
This vehicle is equipped with an extra-large volume self-unloading cargo box, which can easily carry a load of 4 tons. The one-touch activated hydraulic self-unloading function significantly improves the loading and unloading efficiency, saving both time and effort. The perfect combination of the powerful power system and the intelligent control system enables the vehicle to move flexibly when climbing slopes and overcoming obstacles, and it can easily deal with various road conditions.
Parameters
Engine Model | YUNNEI490 |
Engine Power | 37kw |
Emission Standard | Euro 2 |
Transmission Model | GULI (21) |
Gear | 3+1 with high and low speed |
Chassis Width | 1500mm |
Track Model | 350*90*56 |
Cabin Size | 2200*1500*500mm (Support Customization) |
| overall dimension | 3300*1500*1800mm |
maximum payload | 4 ton |
Unloading Mode | Hydraulic Tipping |
machine weight | 1600kg |
Traveling Speed | 3-15km/h |
Climbing Angle | 35° |
Starting Method | Electric Start |
Battery | 24v |
Details
Integrated walking wheel （350*90*56） |
|

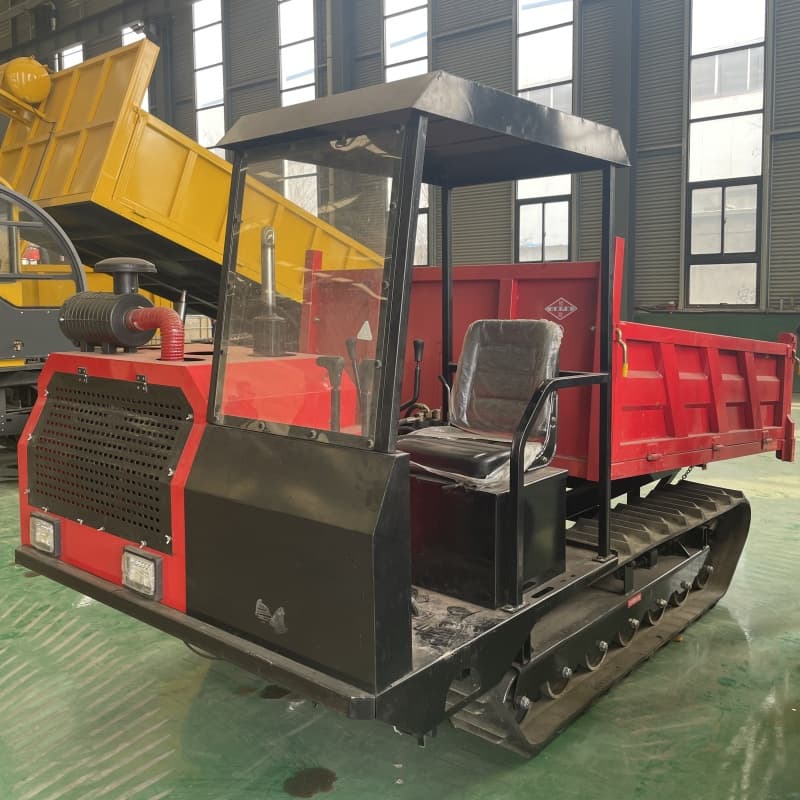

| Driving Position |

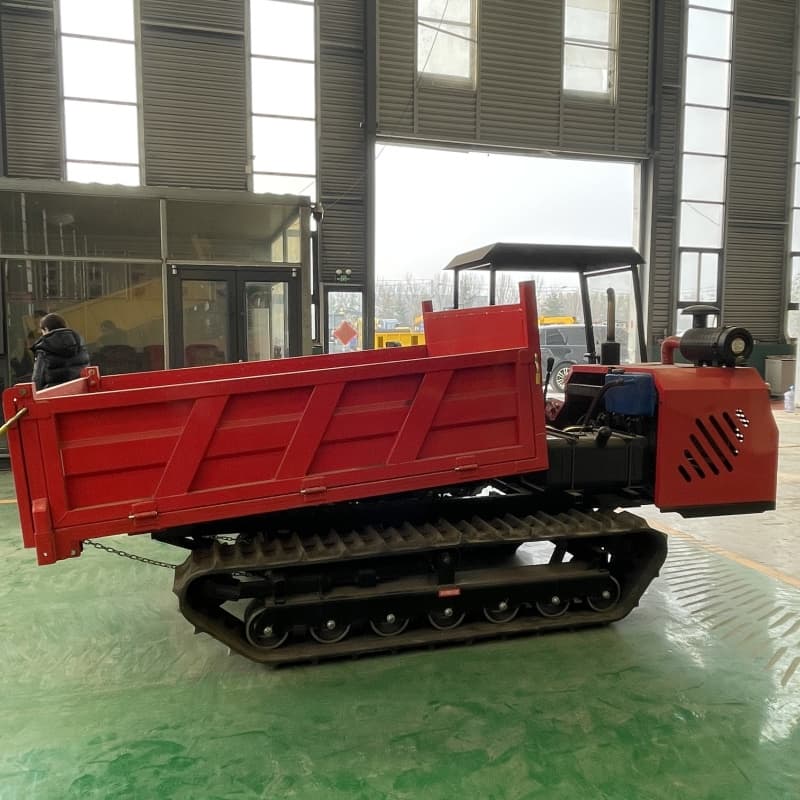

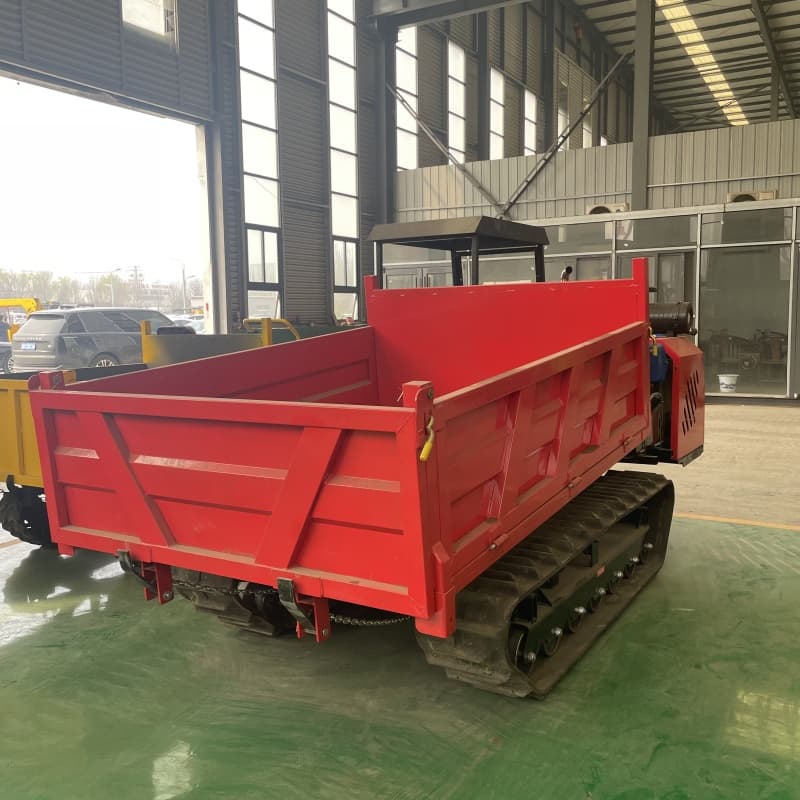

Hydraulic tipping bucket |
|

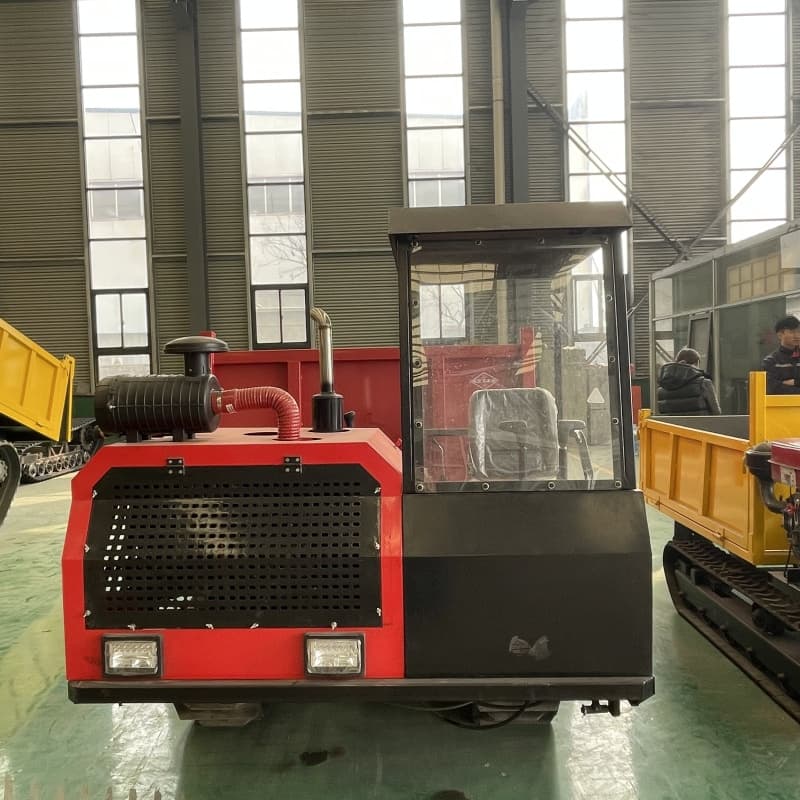

 | engine cover |
