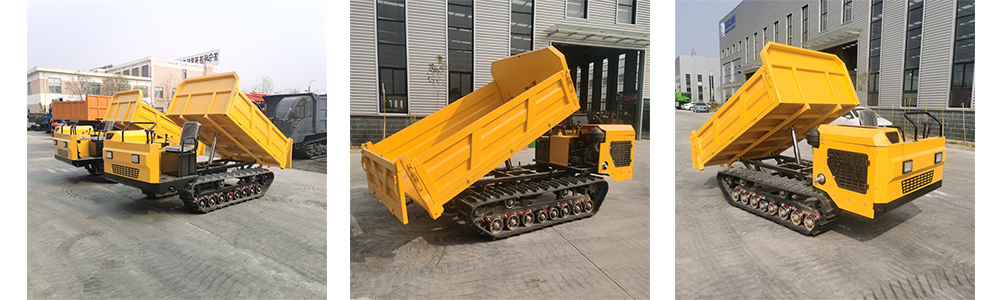

3Ton Crawler Dumper
一、Superior Performance
- With a 3-ton load capacity, it can handle heavy-duty tasks with ease. The powerful engine and robust construction ensure reliable performance even in demanding conditions.
二、Exceptional Versatility
- It can be used in a variety of applications, including construction sites, landscaping projects, and agricultural settings. The crawler design allows for easy movement over different terrains.
三、High Quality and Durability
- Built with high-quality materials and advanced manufacturing techniques, this crawler dumper is designed to last. It can withstand the rigors of heavy use and harsh environments.
四、Environmentally Friendly
- Equipped with an efficient engine that meets stringent emission standards, it is environmentally friendly. Reduced emissions help protect the air quality and contribute to a sustainable future.
一、Powerful Performance
- Boasts a high load capacity of 3 tons, enabling efficient handling of heavy loads. With a robust engine and sturdy construction, it offers exceptional performance in various working conditions.
二、Superior Traction
- The crawler design provides excellent traction, ensuring stable movement on different terrains. It can easily navigate through rough surfaces, slippery areas, and uneven landscapes.
三、Durable Construction
- Constructed with high-quality materials, it is built to last. The durable frame and components can withstand the rigors of heavy use and harsh environments, reducing the need for frequent maintenance and replacement.
四、Efficient Operation
- Equipped with advanced technology, it operates efficiently, saving time and energy. The smooth dumping mechanism and easy-to-use controls make it convenient for operators to perform tasks quickly and accurately.
Parameters
Engine Model | QUANCHAI 25 |
Engine Power | 18kw(25hp) |
Emission Standard | Euro 2 |
Transmission Model | GULI 21 |
Gear | 3+1,with high and low speed |
Chassis Width | 1500mm |
Crawler Model | 350*90*56 |
Cabin Size(L*W*H) | 2200*1600*500mm (Support Customization) |
| Overall dimension(L*W*H) | 3500*1600*1800mm |
Load capacity | 3 ton |
Unloading Mode | Hydraulic Tipping Bucket Tipping |
machine weight | 1600kg |
Traveling Speed | 0-15km/h |
Climbing Angle | 35° |
Starting Method | Electric Start |
Battery | 24v |
The tracked transporter has the following main advantages:
1. Strong traction and climbing capability: The large contact area between the tracks and the ground provides enhanced traction, making it suitable for hauling heavy loads or traversing steep terrains.
2. Improved passability and stability: The track design increases the grounding area and lowers pressure per unit area, enhancing the vehicle's passability and stability.
3. Exceptional adaptability: The tracked transporter is capable of navigating various complex terrains, including mud, sand, and snow, demonstrating its strong adaptability.
4. High durability: Constructed from high-strength materials, it can operate reliably for extended periods in harsh environments, ensuring durability and dependability.
5. Multi-functionality: Modern crawler trucks are often equipped with a range of attachments, such as excavators and bulldozers, enabling them to perform various tasks and enhancing the equipment's utilization rate.
In specific application scenarios, crawler trucks show the following advantages:
1. Site handling: Tracked hydraulic dump trucks excel in stable driving on muddy, slippery, or rugged terrain, providing excellent off-road performance and a high load capacity for transporting substantial quantities of concrete.
2. Complex terrain: The tracked transporter performs effectively across various challenging terrains, including swamps, riverbanks, deserts, rice paddies, tropical rainforests, and icy conditions. Its small turning radius and strong maneuverability make it particularly well-suited for operations in tight spaces.
3. Energy efficiency and environmental protection: Featuring a single-cylinder power system, it operates with low fuel consumption, promoting energy savings and environmental sustainability.
Details
chassis |
|
| Diesel engine (quanchai) |
Hydraulic tipping bucket |
|
 | Operation panel |
