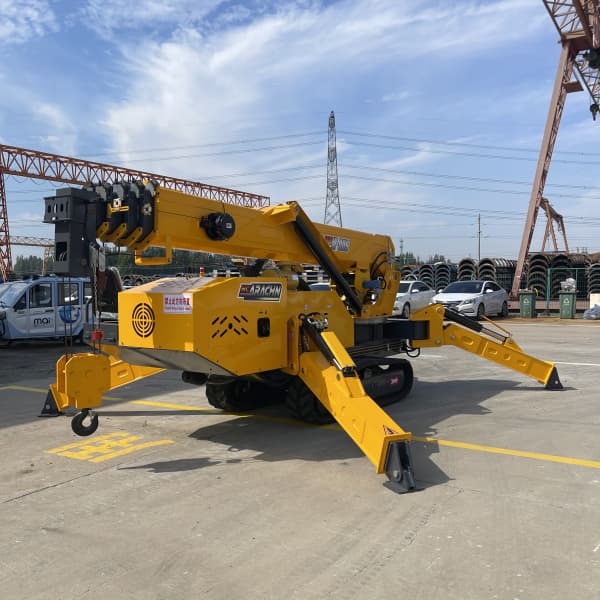

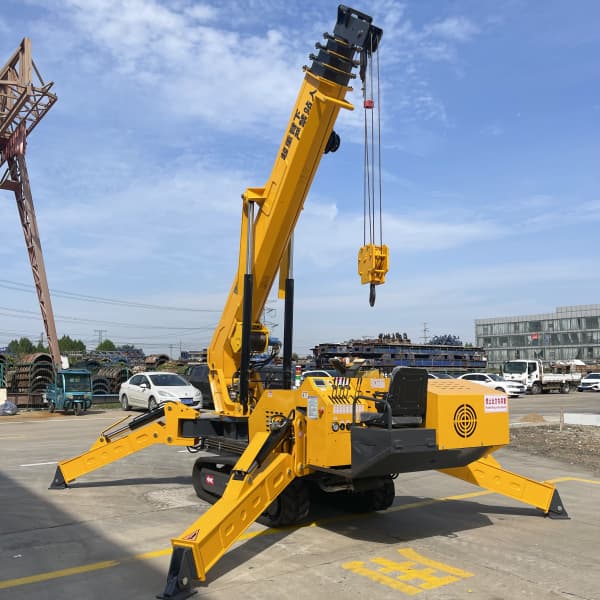

5 Tons Mobile Spider Crane
The crawler-type spider crane is more than just a piece of mechanical equipment; it's an essential tool for modern construction sites. Thanks to its unique crawler design, it effortlessly navigates complex terrains, moving with the agility of a spider across construction sites. Whether used for high-altitude reinforced concrete construction or in narrow urban blocks, it demonstrates exceptional adaptability and stability. With its powerful lifting capacity and precise operational control, every hoisting task becomes efficient and safe. The crawler-type spider crane is not only a vital tool on construction sites but also a trusted assistant in engineering projects, ensuring the smooth completion of every project!
Product customization is supported. You are welcome to visit our factory.
Hardcore Performance + Thoughtful Details: This 5-Ton Spider Crane Redefines Lifting Standards
In the urban concrete jungle, heavy lifting is never about raw power alone—
When traditional cranes falter in narrow alleyways, when hydraulic systems overheat under sweltering sun, or when precision installations demand millimeter accuracy…
Meet our 5-ton crawler spider crane: a dual-threat workhorse designed to tackle brute-force tasks and delicate operations, making it the ultimate "hexagonal warrior" on any job site.
Four hydraulic outriggers extend independently like spider legs, auto-leveling over uneven terrain.
Even if the left outrigger sits on a 30cm-high mound while the right remains 20cm off the ground, the lifting platform stays rock-solid—no wobble, no compromise.
Unleash the Future of Heavy Lifting
Where conventional cranes reach their limits, our 5-ton spider crane expands possibilities. From oil platform construction in the Middle Eastern desert to hig
Parameters
| Maximum operating radius | 15m |
| Maximum ground lift | 16m |
| Hook rising speed | 0-10m/min |
| Wire rope specifications | 10mm |
| Boom length | 4m-15m |
| Boom Angle | 0-75° |
| Rotation angle | 360° |
| Outrigger operation mode | Hydraulic automatic support |
| Drive mode | Hydraulic drive |
| Walking speed | 0-5.5km/h |
| Gradeability | 25° |
| Engine Model | YN25GBZ |
| Engine power | 37kw |
| Emission standards | Euro 2 |
| Displacement | 2.7L |
| Startup method | Electric start |
| Fuel Type | Diesel |
| Fuel tank capacity | 50L |
| Battery capacity | 24v/45AH |
| Noise Level | Rated speed ≤81.5dBA |
| Dimensions(L*W*H) | 4500*1360*2100mm |
Details

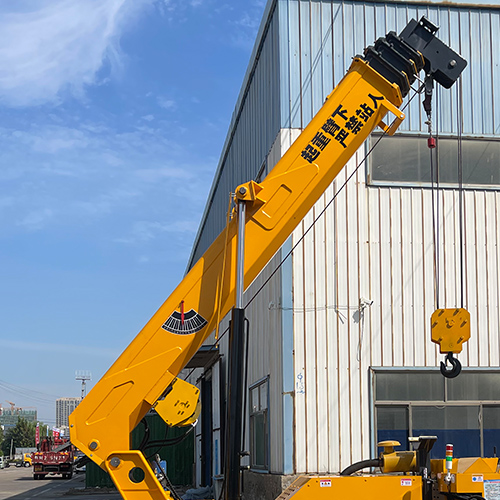

5 ton crane (Adopting a dual amplitude hydraulic cylinder design) |  |

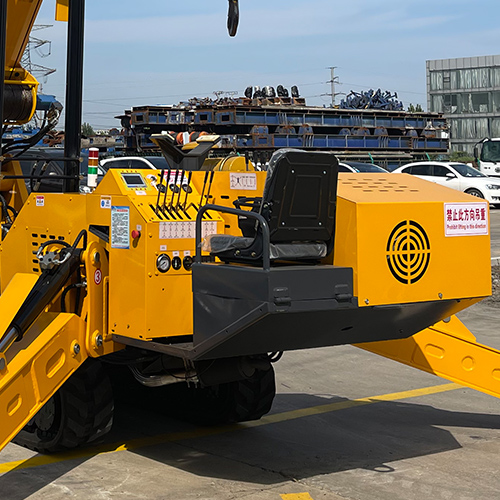

 | operating position (Can be operated while sitting or remotely controlled) |

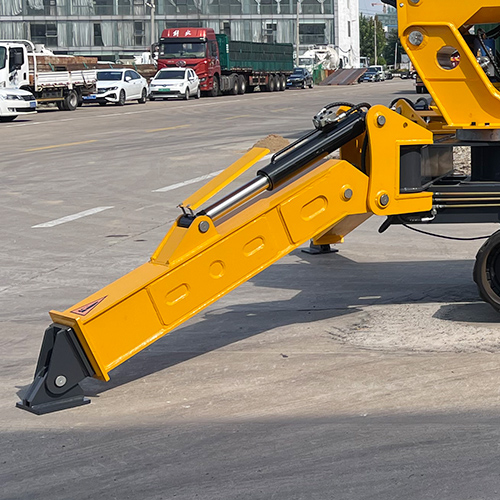

Hydraulic spider legs (Thickened cylinder design can be double-sectioned and has leveling function) |  |

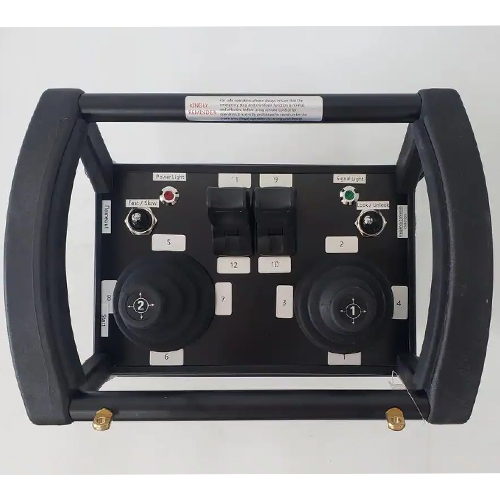

 | Wireless remote control （Maximum remote control distance of 100 meters, electromagnetic ratio） |
