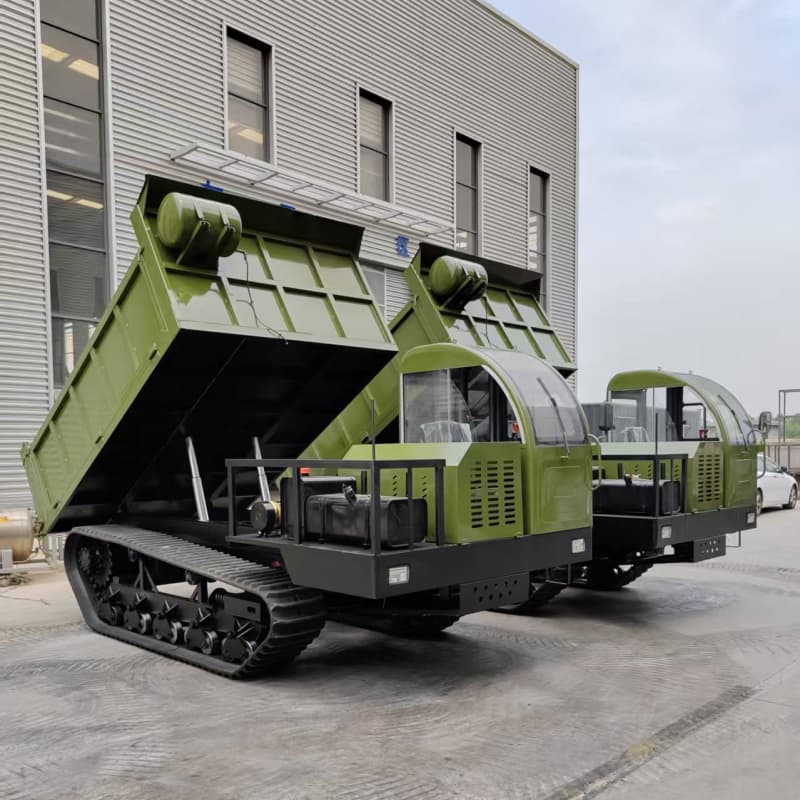

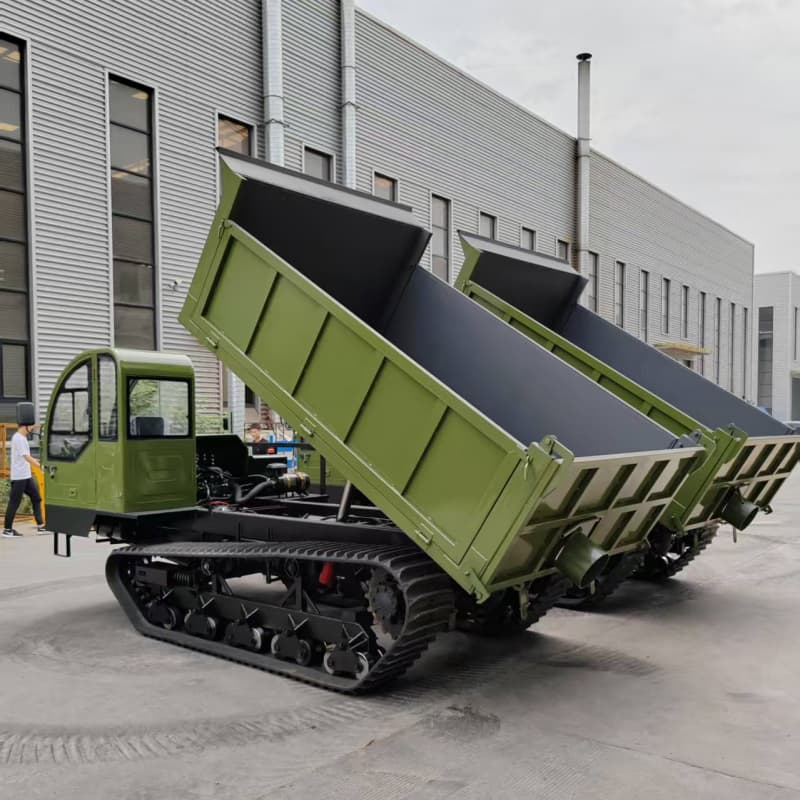

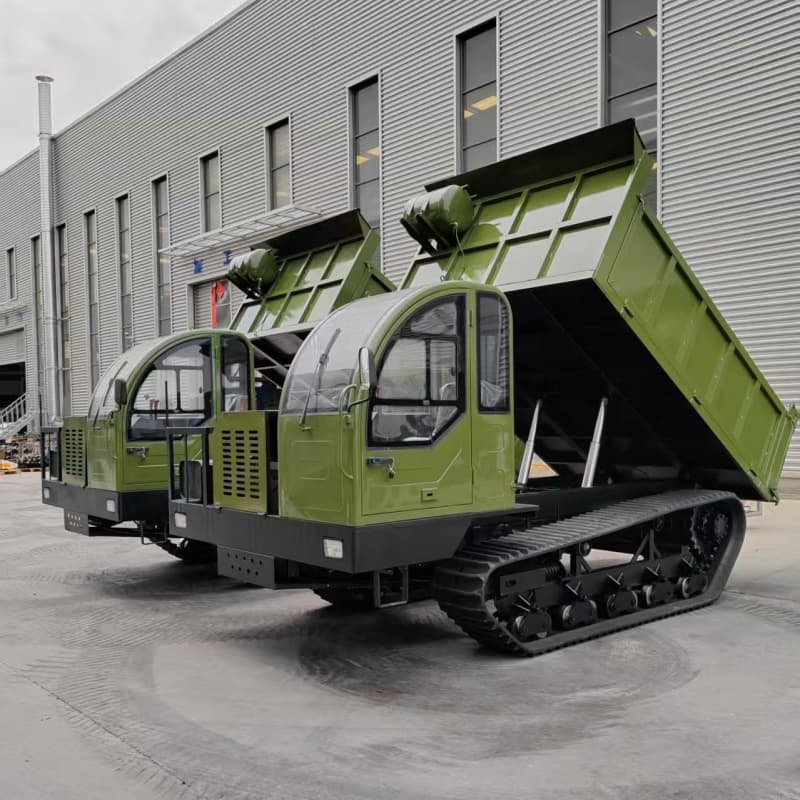

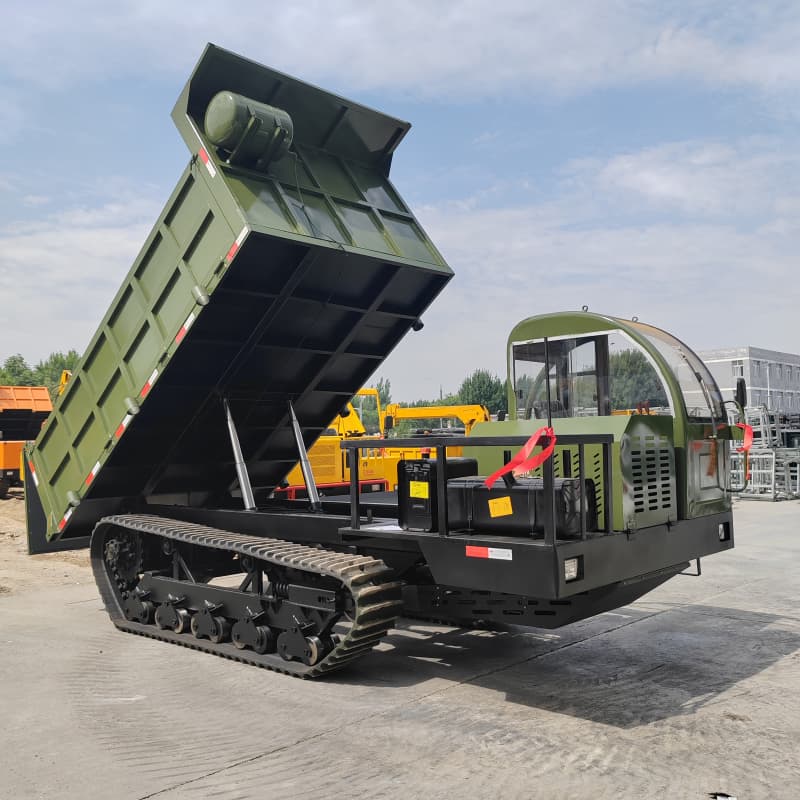

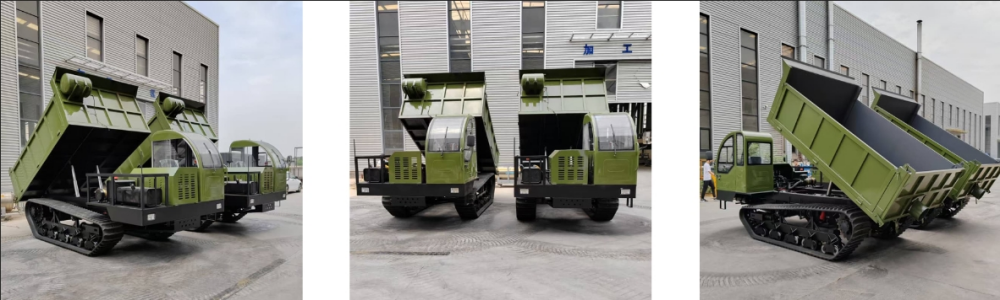

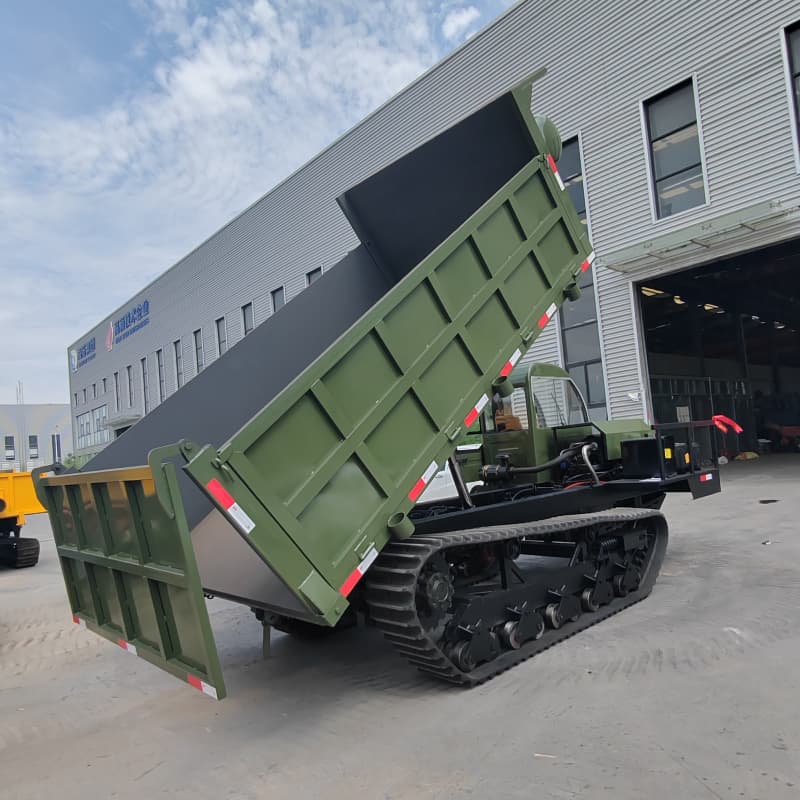

10 Tons Diesel Crawler Dump Truck
Efficient transportation is crucial, but comfort matters too! The Minecheng 10-ton tracked dump truck empowers engineering operations with its human-centric design. Featuring a double-layered thickened frame and reinforced chassis, it effortlessly carries 10 tons of materials, ensuring smooth operation even when climbing steep slopes under heavy loads. Thanks to its tracked design paired with multiple sets of idler wheels, it offers exceptional traction on challenging terrains such as muddy ground, steep slopes, and rocky surfaces, minimizing the risk of skidding and rollovers. This allows it to move steadily even in harsh working conditions, making it the ideal choice for heavy-duty transportation scenarios like mining operations, water conservancy projects, and mountainous infrastructure construction.
The Minecheng 10-ton tracked dump truck is specially built for harsh engineering environments, redefining the standards of efficient transportation with its exceptional performance and innovative design.
Superior Load Capacity, High-Efficiency Transportation:
With a rated load capacity of 10 tons, it enables rapid loading and unloading of materials, significantly improving transportation efficiency. The thickened double-layer frame and reinforced chassis structure ensure stability during heavy-duty operations, allowing it to easily tackle complex road conditions even when fully loaded.
Powerful Performance, Unfazed by Challenges:
Equipped with a high-power turbocharged engine and matched with a high-torque transmission, it delivers strong and stable power output. Whether navigating muddy mountain roads, steep slopes with gravel, or soft sandy terrain, it provides ample driving force to effortlessly overcome obstacles and ensure efficient progress of operations.
Comfortable, Intelligent, and Human-Centric Design:
The spacious enclosed cab is equipped with shock-absorbing seats and can be fitted with heating and air conditioning to isolate noise and harsh environments. The integrated intelligent operation panel simplifies control processes, making operation convenient and intuitive.
Whether used in mining, water conservancy construction, transportation infrastructure, or emergency rescue and transportation, the Minecheng 10-ton tracked dump truck, with its powerful performance and reliable quality, will become a solid partner in your engineering operations, helping you efficiently complete every task.
Parameters
Engine Model | WEIFANG 4108 |
Engine Power | 95KW |
Emission Standard | Euro 2 |
Transmission Model | WLY 545 |
Gear | 5 forward gears, 1 reverse gear，with high and low speeds |
Chassis Width | 2200 |
Crawler Model | 400*90*82 |
| Track model | 400mm |
Carriage size(L*W*H) | 3200*2200*800mm (Support Customization) |
| Thickness of carriage steel plate | Bottom 5mm, side 3mm |
| overall dimension | 4500*2200*2300mm |
Load capacity | 10 TON |
Unloading Mode | Hydraulic dump |
machine weight | 4500kg |
Traveling Speed | 0-6km/h |
Climbing Angle | 35° |
Starting Method | Electric Start |
Battery | 24v |
| Braking method | Air brake |
| Steering method | Hydraulic Power Steering |
| Traveling wheel | Floating solid wheel |
| Cab | Single person enclosed cab |
Details
Hydraulic dump box |
|
| Diesel engine (Support customization) |
Hydraulic tightening |
|
 | Driving gear |
