1.5 Tons Small Crawler Dump Truck For Agriculture

This crawler dump truck, specially designed for agriculture, moves on muddy ground as smoothly as on flat surfaces. Its core advantage lies in being equipped with the Changchai 195 engine. Though it is not large in size, it boasts a powerful 13-horsepower output. This strong power enables it to easily handle various complex terrains, such as field paths and muddy orchard roads, ensuring stable driving and the smooth progress of transportation tasks.

The load-carrying capacity of the vehicle is a key consideration. This dump truck can carry a weight of up to 1.5 tons, which is fully capable of meeting the demand for cargo transportation in agricultural production. It can handle the transportation of large quantities of palm fruits and other agricultural products with ease. Meanwhile, the carriage is designed with dimensions of 1.4×1.2×0.8 meters and features a heightened cargo box design. This not only increases the loading capacity of goods but also effectively prevents goods from falling during transportation, ensuring the safety and stability of transportation.

When it comes to its unique crawler design, it is undoubtedly a major highlight of this vehicle. With a crawler specification of 230×72×46, this design endows the vehicle with extremely strong adhesion, and its grip far exceeds that of ordinary tire vehicles. On slippery surfaces such as muddy ground and wetlands, it can firmly grip the ground, ensuring the stable movement of the vehicle and greatly reducing the risk of the vehicle getting stuck in the mire. Moreover, the vehicle is equipped with 5 150 supporting wheels, which further enhance its passing ability and stability in complex terrains. The supporting wheels can evenly distribute the weight of the vehicle, reduce the pressure on the ground, and allow the vehicle to drive smoothly even on soft ground.

In the past, some regions often relied on livestock such as buffaloes for agricultural transportation. However, the transportation efficiency of livestock is relatively low, and they are greatly affected by factors such as weather and physical strength. With this 1.5-ton crawler dump truck, the situation has been greatly improved. It can replace buffaloes for transportation work, with faster transportation speed and longer working hours. Not limited by the physical strength of livestock, it can significantly improve transportation efficiency and save valuable time and labor costs for agricultural production.

Whether in palm fruit plantations or other scenarios requiring agricultural transportation in complex terrains, the 1.5-ton crawler dump truck, with its strong power, excellent load-carrying capacity, outstanding crawler design, and efficient transportation performance, has become a capable assistant in agricultural production and contributes to the development of agricultural modernization.

Technical parameters




Engine Model	Kaiyuelin/Changchai/Youpu
Engine power/horsepower	8kw/11hp
Transmission Model	18
gear level	3+1 gears
Caterpillar model	230*72*46
travel speed	2-15km/h
Carriage (length*width*height)	1400*1000*460
Vehicle size (length * width * height)	2580 * 1100 * 1310




Details

Product details will help you better understand the product.

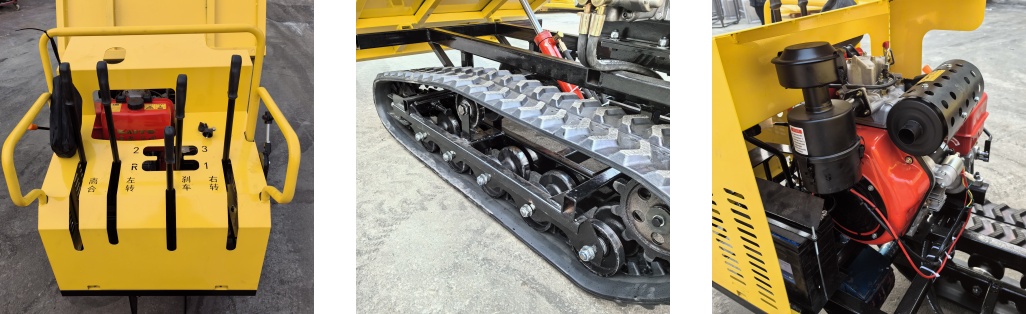

Thickened frame Strong load-bearing capacity  and large capacity effectivelyresist wear and impact

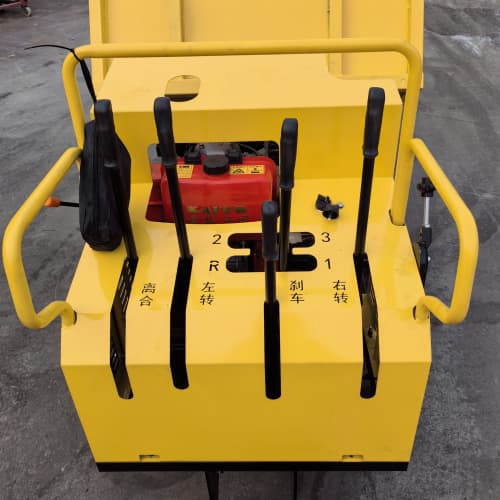

	Control Panel The lever mechanism is simple and easy to use,  significantly improving your work efficiency.
Specially Designed Rubber Running Track The track uses specially designed engineering  rubber with built-in steel plates, providing strong grip.
	Brand strength  Powerful features  and support for custom engines.
