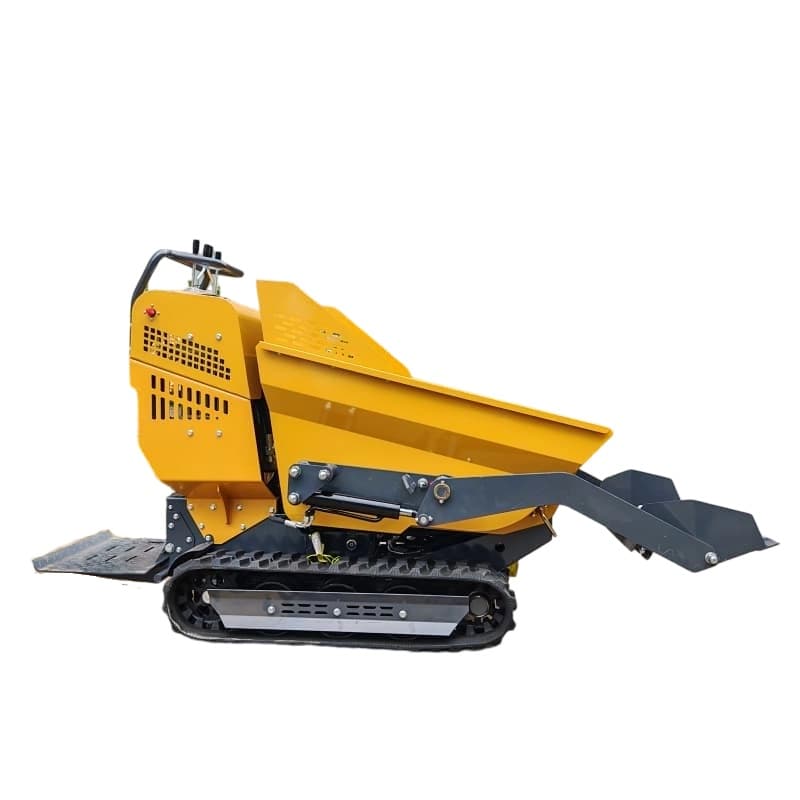

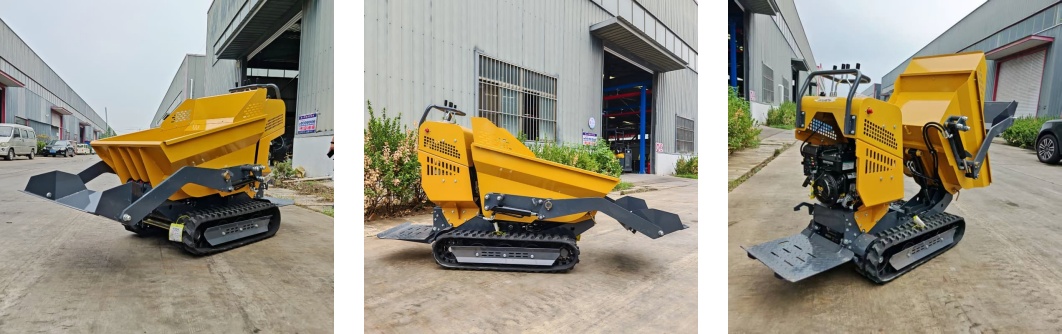

500KG Crawler Dump Truck
The 500KG Crawler Dump Truck boasts a compact build yet robust performance—a perfect fit for diverse scenarios, including home yards, gardens, golf courses, waste treatment plants, small-scale construction projects, light road maintenance, and small mining sites.
Equipped with a heavy-duty bucket, it excels at tackling heavy loads like sand, gravel, fertilizer, and debris, seamlessly matching the demands of each application to boost work efficiency.
Model | KC-500 |
Load（kg) | 500 |
Weight（kg) | 414 |
Welcome to visit our factory. Customization is available according to your needs.
Advantage:
1.Easy and comfortable operation due to the intuitive controls.
2.Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.
3.Easy climbing and stable crossing the obstacles.
4.Spot turning, mini slipping.

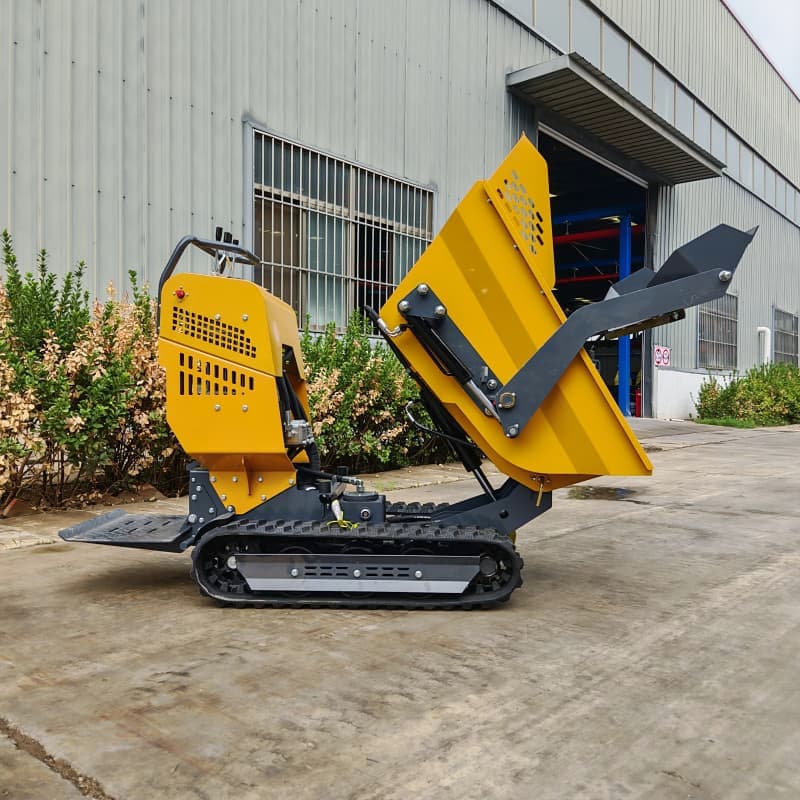

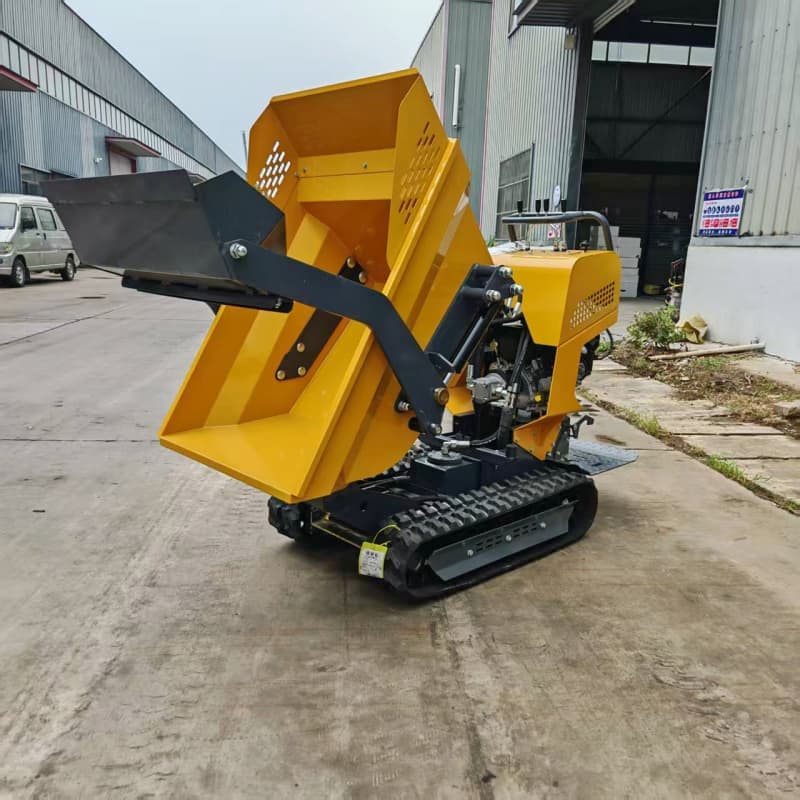

Mini Full Hydraulic Crawler Dumper:Equipped with hydraulic dumping system and high load-bearing capacity, it’s an efficient helper for transportation.
Direct from manufacturer, excellent performance;flexible steering, easy operation; thickened body for longer durability, hydraulic lifting for fast operation.
Rubber crawlers:anti-slip, wear-resistant and strong grip.
Hydraulic cylinder dumping:compact structure with good stability.Upgraded chassis adopts advanced technology; crawler travel with small turning radius.
The crawler is embedded with steel wires and plates, greatly extending service life and enhancing wear resistance.
Widely used in farms, gardens and other places, easily adapting to complex terrains and road conditions.
Pasrameter
Engine data | |
Engine Model | Briggs&StrattonPioneer（Complies with EPA/Euro V emission standards） |
Engine Type | Single cylinder, OHV, 4-stroke, air cooling |
Displacement | 203CC |
Rated Power | 6.5HP/3600rp |
Fuel Type | 92 # Gasoline |
Fuel Consumption | ≤0.395 |
Fuel Tank capacity | 3.6 L |
Engine oil capacity | 0.6 L |
Weight | |
Total Weight | 414 KG |
Max loading weight | 500 KG |
Machin size （ Without pedal, without bucket） | 1570*880*1300 mm |
Bucket size with foot pedal | 2050*880*1300 mm |
Container size | 1050*730*730 mm |
Chassis width | 700 mm |
track width | 180 mm |
Track grounding length | 1000 mm |
Chassis ground clearance | 110 mm |
Hopper | |
Cargo box Capacity | 200 dm³ |
Tipping Systm | Hydraulic Tippe |
Tilting Angle | 90° |
Unloading height above ground | 260 mm |
Walk | |
Walking Speed | 2.88 km/h |
Minimum Turning radius | 1.15 m |
Track gauge | 520 mm |
Chassis ground clearance | 100 mm |
Climbing abillty | 20° |
Hydraulic oil | |
Hydraulic oil model | 46 # Anti-wear Hydraulic Oil |
Hydraulic tank capacity | 8.2 L |
Details

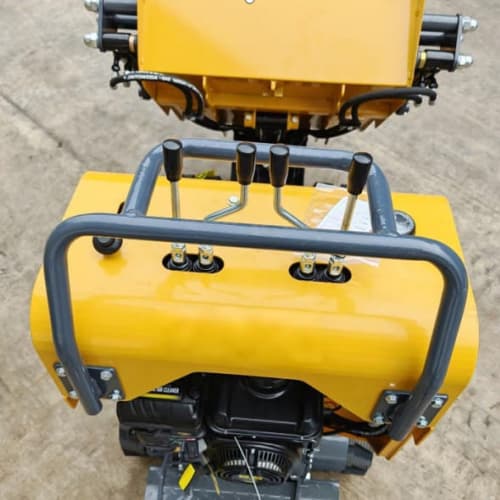

Joystick for easy control Easy to operate, easy to unload,retumbucket, and shift gears |
|

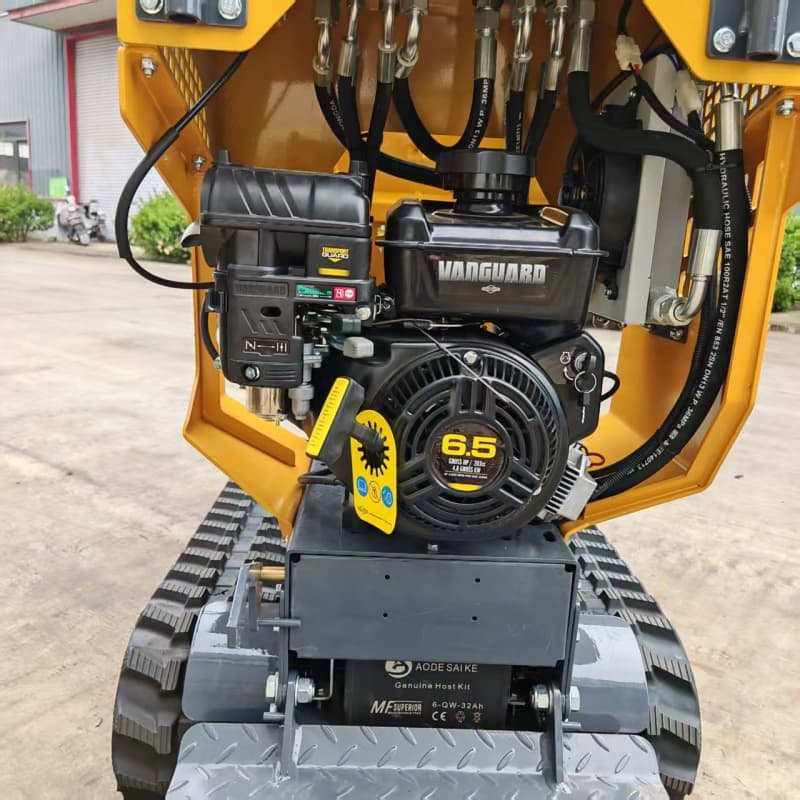

| Engine Model: Briggs & Stratton Pioneer Displacement: 203cc Rated Power: 6.5hp/3600rpm |

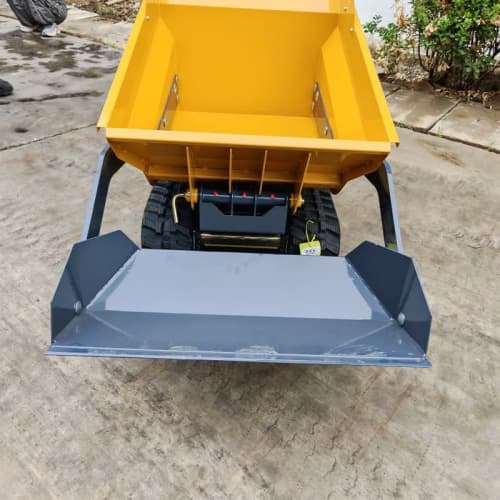

Hydraulic self-loading bucket Load capacity: 500 kg |
|

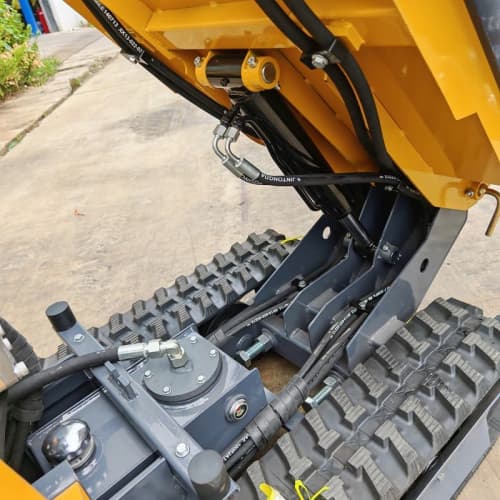

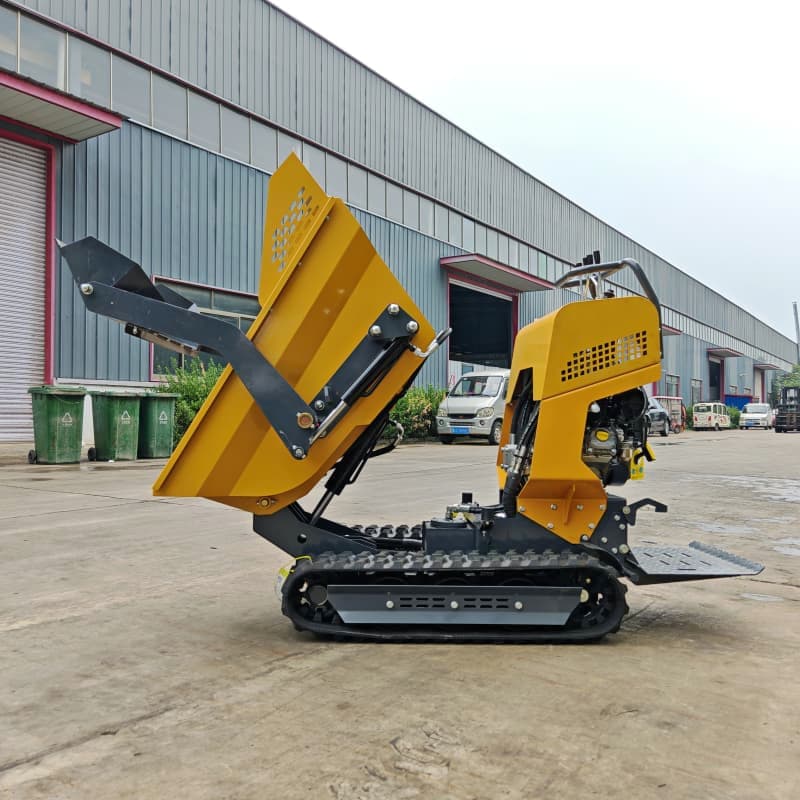

| Hydraulic dump Hydraulic lift, not easy to rust One key start, easy loading and unloading of goods |
Exhibitions Customers

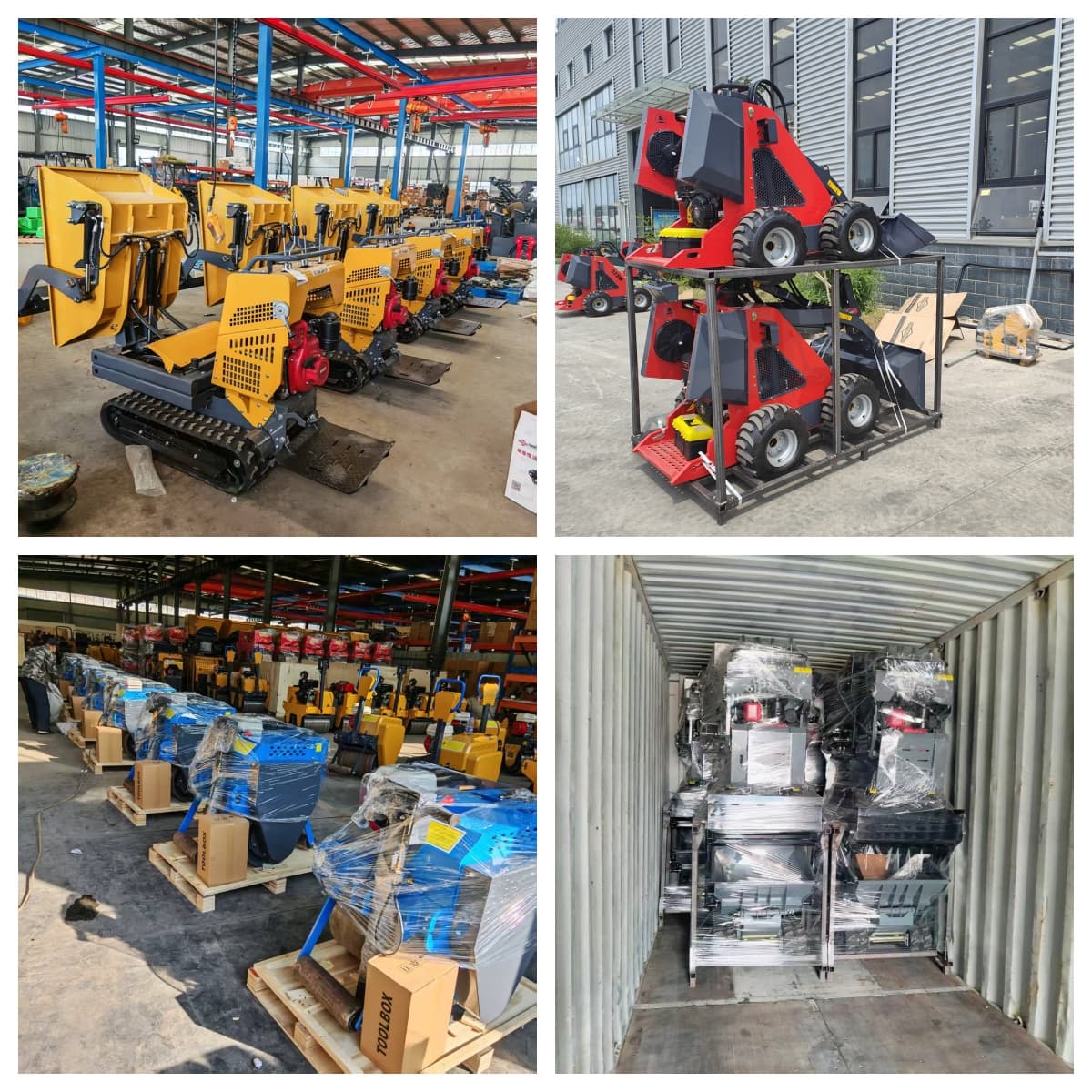

Packing Delivvery
FAQ
Q1. Are you a manufacturer?
A: Yes, we are a factory with more than 9 years of manufacturing experience.
Q2. How can we guarantee quality?
A: There will be a pre-production sample check before mass production and a final inspection before shipment.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 10-15 working days after receiving your advance payment. The specific delivery time depends on the quantity of your order.
Q5. How much is the freight fee?
A: We will confirm the freight cost based on the size of the model, packing, transportation method, and delivery terms.
Q6. What are your terms of packing?
A: Generally, we use standard exported wooden cases for LCL goods and fixed well for FCL goods.
Q7. Can you customize or support ODM/OEM?
A: Yes, with sufficient quantities, we can customize unique designs and colors for you.
Q8. How do you make our business a long-term and good relationship?
A: We keep good quality and competitive prices to ensure our customers' benefits; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
