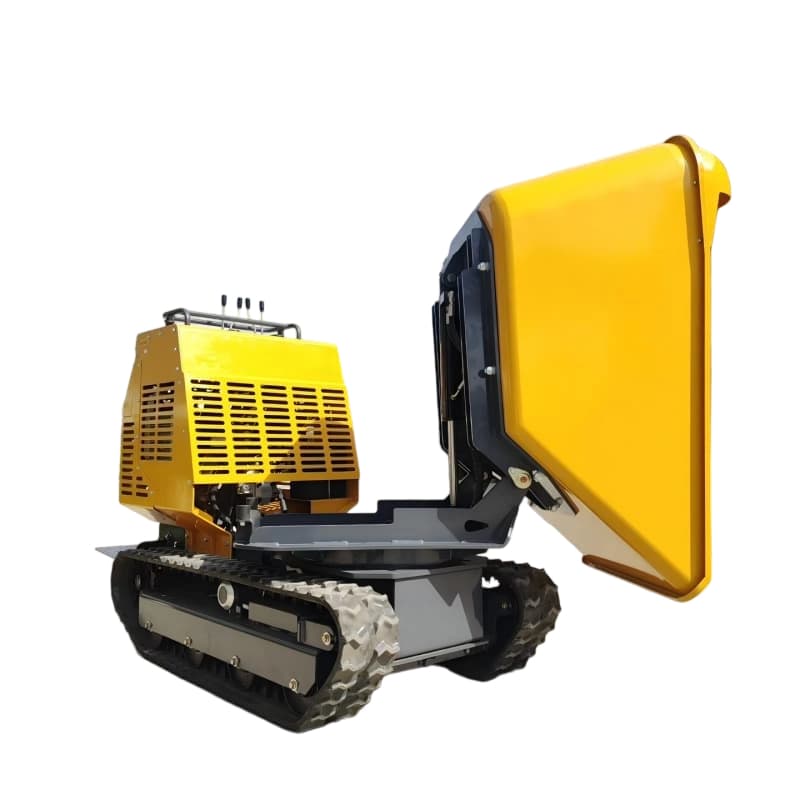

Rotary Dump Truck
With a 1200KG heavy-duty capacity, 180° bidirectional rotation, full hydraulic drive, and tracked off-road design, it combines "compact and agile" with "hardcore strength," solving the pain points of unloading in complex scenarios!
The tracked walking system has strong traction, preventing slippage and sinking, easily conquering complex terrains such as mountains, mud, gravel, and orchards. It can travel steadily where conventional wheeled vehicles cannot! Suitable for various scenarios including engineering construction, agricultural production, and outdoor operations.
| Model | KC-1200 |
Load（kg) | 1200 |
| Weight（kg) | 850 |
Welcome to visit our factory. Customization is available according to your needs.
The tracked off-road design is adaptable to all terrains including mountains, mud, and gravel, offering strong traction and excellent passability. It remains stable even under a 1200 kg load, and its 180-degree bidirectional hydraulic unloading eliminates blind spots, allowing for efficient operation without the need for vehicle body adjustments! The ultra-compact body combined with flexible tracks allows for easy movement through narrow alleys, workshops, and orchards. Hydraulic drive with one-button control for lifting and unloading is energy-efficient, durable, and suitable for multiple industries, making it the top choice for heavy-duty tracked material handling and unloading.
Versatile for Multiple Industries:Suitable for construction projects, agriculture and orchards, warehousing and logistics, municipal sanitation, mining, etc., integrating transportation and unloading—one vehicle handles multiple needs.
Durable and Robust:The frame is made of high-strength steel, the track components are made of selected wear-resistant materials, and the hydraulic system uses high-quality parts, making it resistant to heavy loads and wear, with a long service life and low maintenance costs.
Direct from Manufacturer: Produced directly from the source factory, supporting bulk customization (color, load capacity, and size are negotiable), eliminating middlemen and ensuring higher cost-effectiveness and guaranteed delivery time.
Worry-Free After-Sales Service:Provides complete warranty service, a professional technical team for online guidance on installation, operation, and maintenance, and a long-term supply of spare parts, eliminating any concerns after procurement.
Pasrameter
Detailed specifications to help you better understand the product.
| Engine data | |
| Engine Model | Briggs&Stratton（Complies with EPA/Euro V emission standards） |
| Engine Type | Single cylinder, OHV, 4-stroke, air cooling |
| Displacement | 420CC |
| Rated Power | 13.5HP/3600rp |
| Fuel Type | 92 # Gasoline |
| Fuel Tank capacity | 6.5 L |
| Weight dat | |
Net Weight | 850 KG |
Maximum load capacit | 1200 KG |
Body size :(Footboard not included) | 2060*900*1400 mm |
Pedal machine size included | 2470*900*1400 mm |
Container size | 1400*800*600 mm |
Chassis width | 850 mm |
| Rotating data | |
Maximum rotation Angl | 180° |
Rotation mode | Hydraulic rotatio |
Tipping interval | 320 mm |
Track data | |
track width | 180 mm |
Track grounding lengt | 1000 mm |
Chassis ground clearance | 140 mm |
| Hopper data | |
Cargo box Capacity | 594 dm³ |
| Tipping Systme | Hydraulic Tipper |
| Tilting Angle | 90° |
Clearance after tipping container | 400 mm |
| Walk data | |
| Walking Speed | 5 km/h |
| Climbing abillty | 25° |
Details
Product details will help you better understand the product.
Joystick for easy control Easy to operate, easy to unload, retumbucket, and shift gears |
|
 | Engine Gasoline engine, highpower, low noise, lowmaintenance cost |
Hydraulic dump Hydraulic lift, not easy to rust One key start, easy loadingand unloading of goods |
|
 | Rubber track Engineering rubber track, strong gripGood climbing performance, anti-wear |
