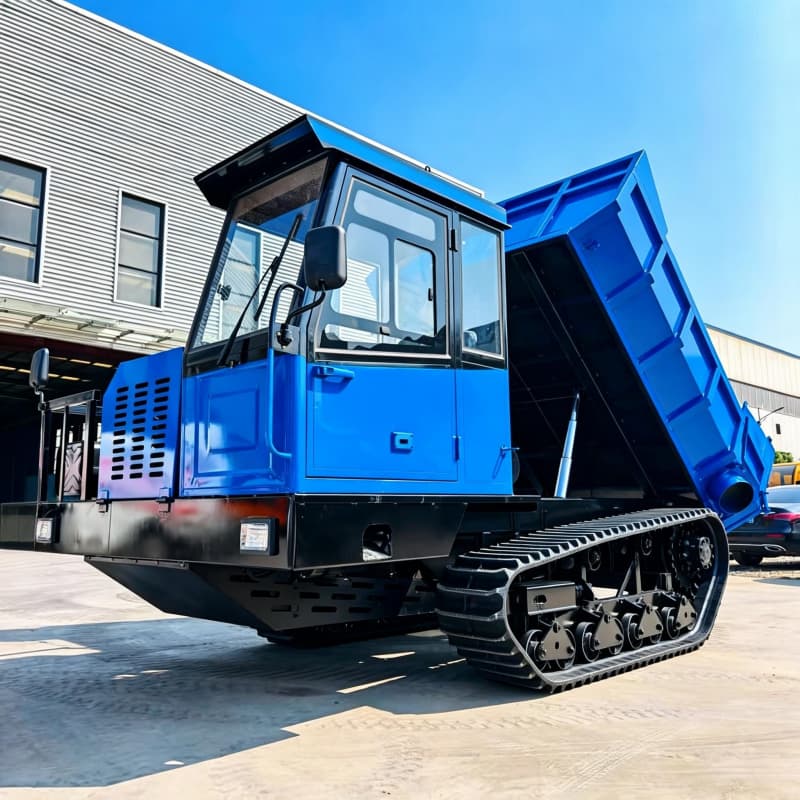

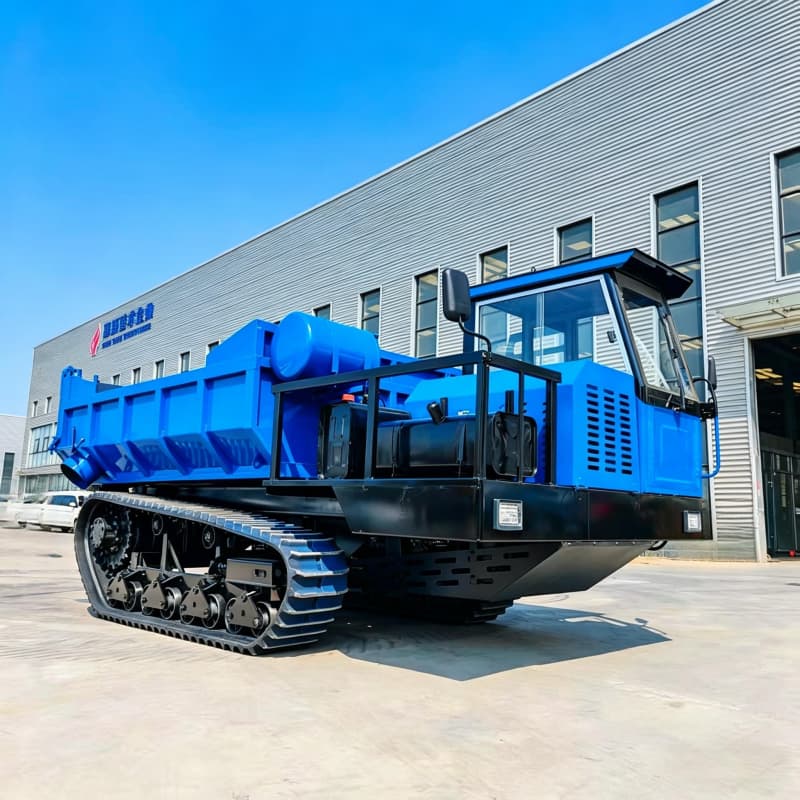

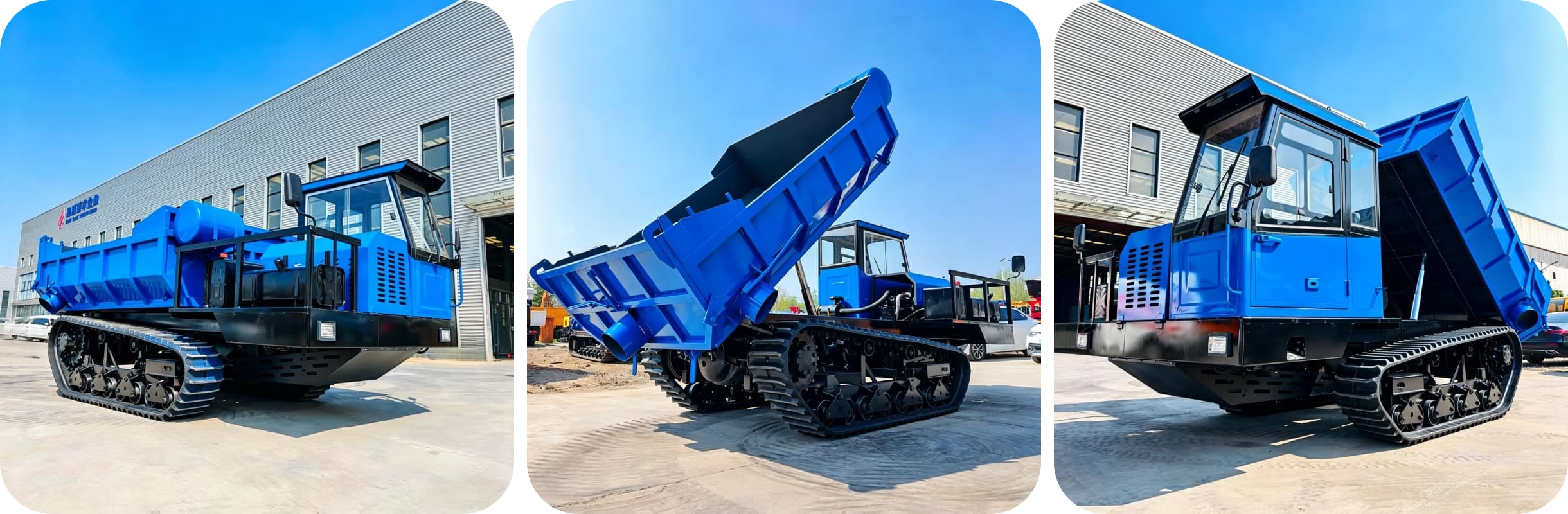

Crawler dumper with Discharge Port

Product Description

Product Advantages

This 8-ton tracked dumper is purpose-built for complex engineering transport scenarios, balancing power, stability, and practicality. Featuring meticulously selected core components and design details tailored to real-world operational needs, it offers flexible customization options to suit specific client requirements and is capable of performing effectively in a wide range of demanding work environments.

• Compact 8-ton design with rubber tracks – low ground pressure

• Flexible engine options – Weifang, Weichai, Yuchai, Cummins

• U-shaped cargo box with 3-sided discharge opening

• Dual hydraulic self-dumping system

• Optional AC cab + luxury seat upgrade

• 4 floating wheels per side for smooth ride




Product Details

Engine – Flexible Selection

This 8-ton tracked dumper supports a variety of engine brands to meet diverse power and budget requirements.

• Weifang – cost-effective, easy maintenance

• Weichai – high torque, fuel efficient

• Yuchai – reliable, widely used in heavy loads

• Cummins – low emissions, international standard

Transmission

Equipped with WLY 545 or FAST manual transmission. Features 5 forward gears + 1 reverse gear with air-assisted high/low speed shifting – perfect for heavy climbing and fast site transfers.

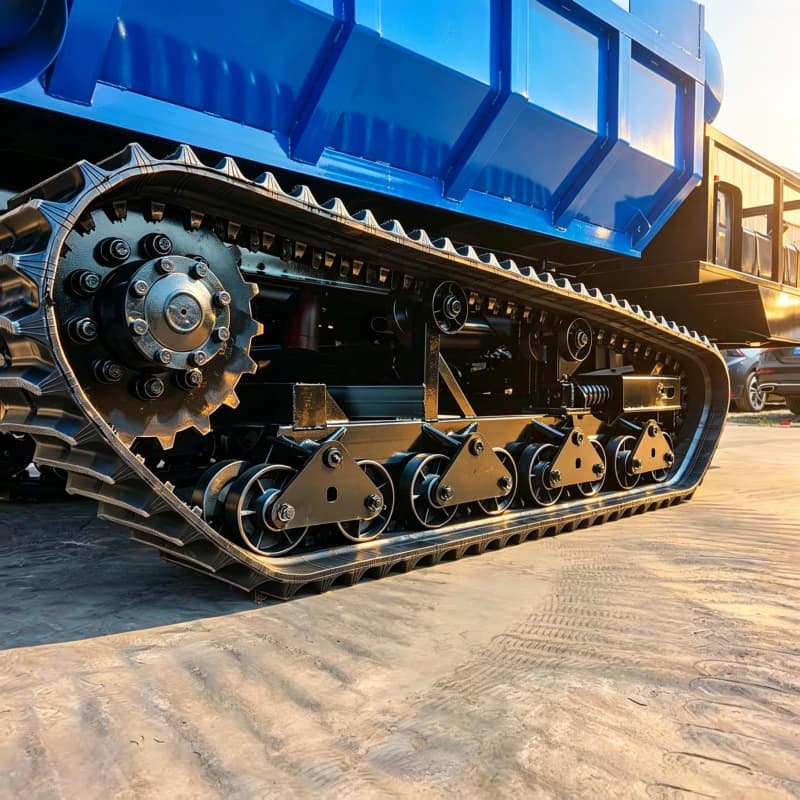

Undercarriage – Rubber Steel Tracks

• Track material: engineering rubber tracks with steel inserts

• Track size: 400×90×68

• Suspension: 4 floating wheels per side – absorbs shock, reduces vibration, extends track life

• Provides excellent traction on pavement, gravel, mud, and snow without damaging hard surfaces

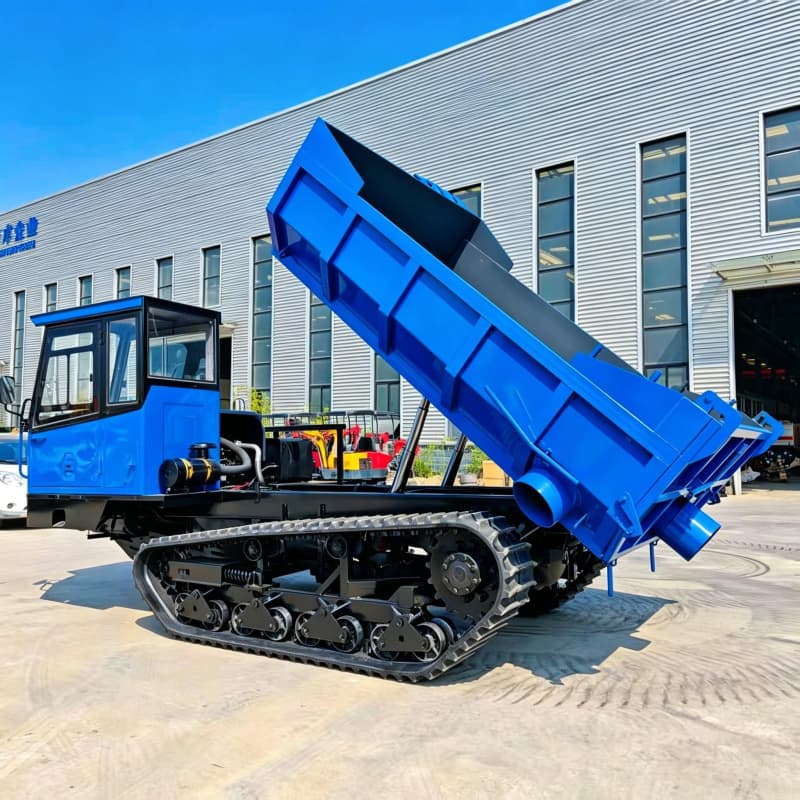

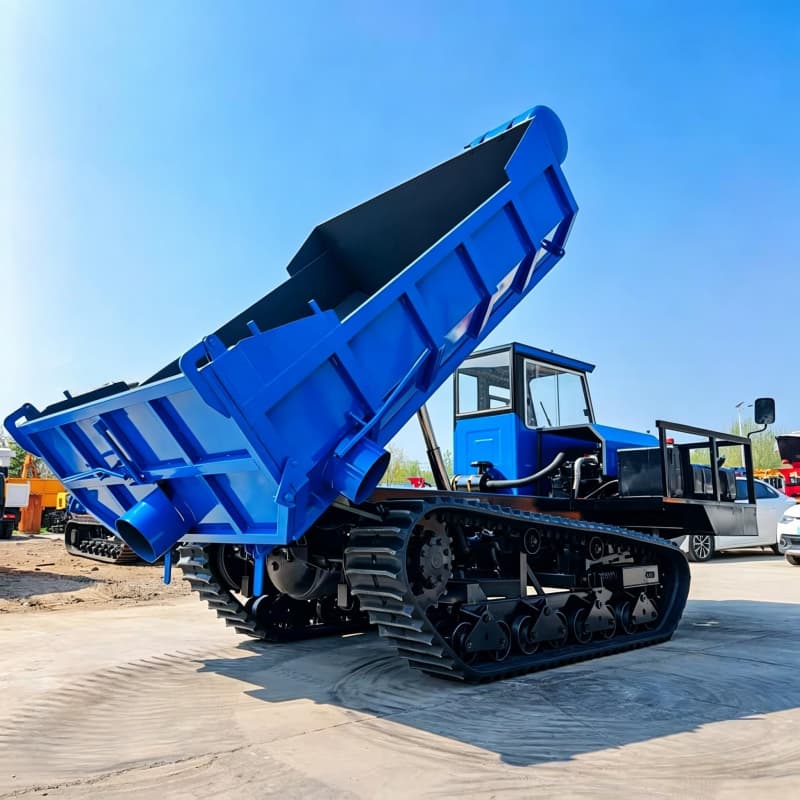

Cargo Box – U-Shape with Discharge Openings

• Standard box size: 2600×2100×500mm

• Whole machine size: 4200×2100×2200mm (customizable)

• U-shaped body – clean material flow, no residue

• 3-sided reinforced discharge openings – faster unloading, more flexible operation

• Lifting system: dual hydraulic cylinder self-dumping – stable and powerful

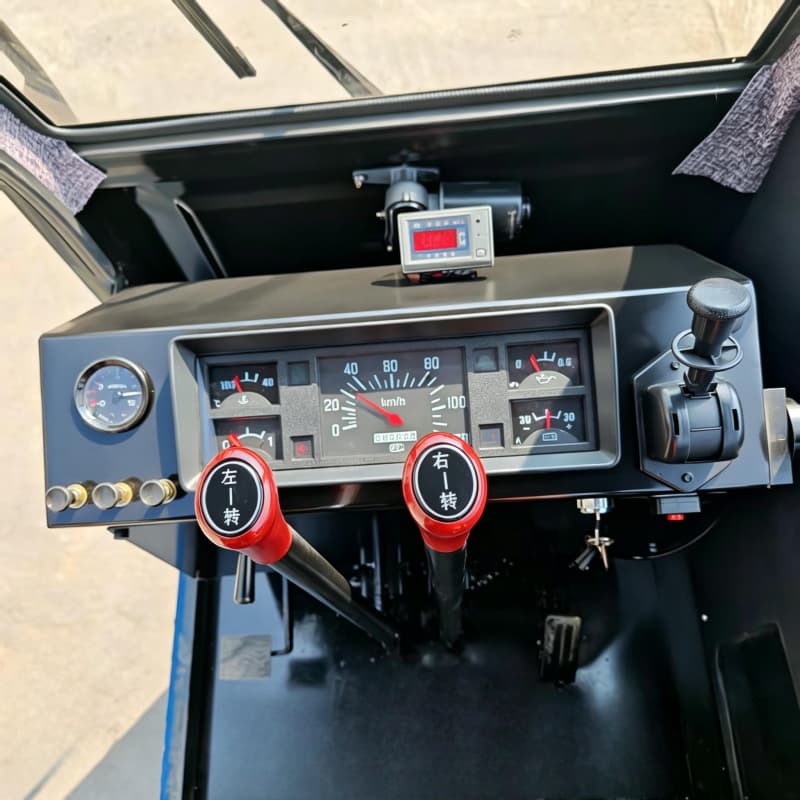

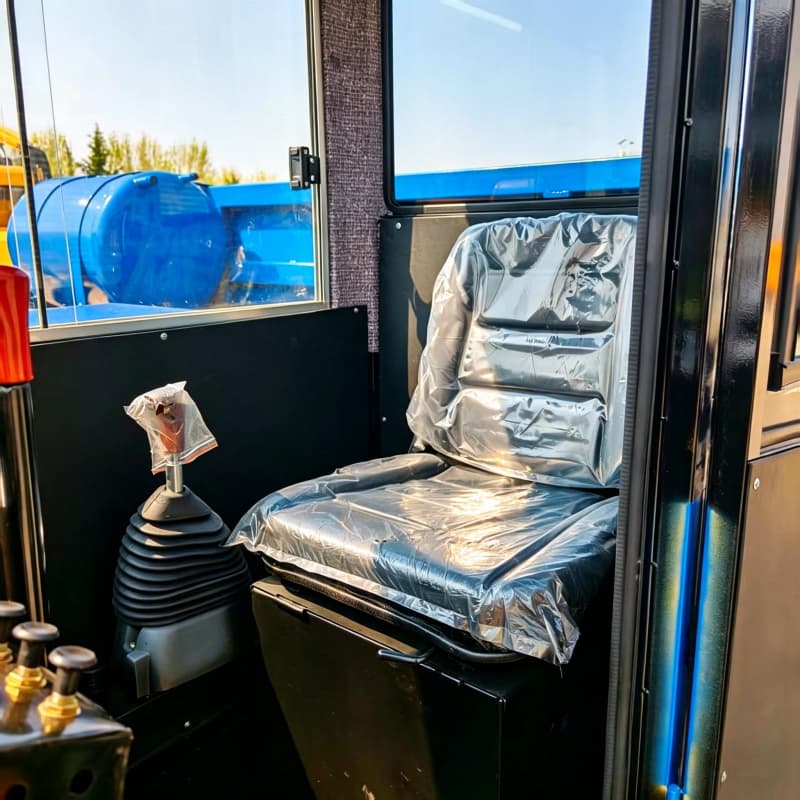

Cab – Optional Comfort Upgrades

• Standard: sturdy roll-over protection frame (ROPS)

• Upgrade package: air conditioning, luxury seat, soundproof & insulated interior – for all-day comfort in any weather

Details

 Terrain & Application Scenarios

Who It’s For

Leveraging a design featuring high-quality tracks and floating wheels, this equipment boasts exceptional terrain adaptability, effortlessly navigating a wide variety of complex landscapes—including muddy paths, marshlands, paddy fields, rocky mine slopes, hilly and mountainous regions, soft dirt roads, and unpaved construction surfaces. By breaking free from the traditional wheeled vehicle's reliance on specific road conditions, it maintains low ground pressure—thereby minimizing the risk of getting stuck or slipping—and ensures stable passage even across soft ground with limited load-bearing capacity. Furthermore, it traverses potholes and obstacles with ease, thereby fundamentally resolving the critical challenge of obstructed transport in complex terrain.

Ready to Order

• Contact us with your preferred:

• Engine brand

• Transmission type (WLY 545 / FAST)

• Cargo box size and shape

• Required attachments

Packaging & Shipping

All machinery (excavators, dump trucks, etc.) inside the containers has been secured, reinforced, and provided with weather protection measures.

Our Partners

Certifications & Partnerships

Shandong Kuangcheng holds numerous patents (encompassing both invention patents and utility model patents).

• Recipient of CE and ISO 9001 certifications.

• Strategic Technology Partner of Tsinghua University.

• Trusted Supplier to the State Grid Corporation of China.

*From Tsinghua’s structural optimization to State Grid’s real-world infrastructure projects – this 15 ton steel crawler dumper is built for heavy loads and bad roads.*

Contact Us

• We’ll quote a customized 8T crawler carrier for your specific job site conditions.
