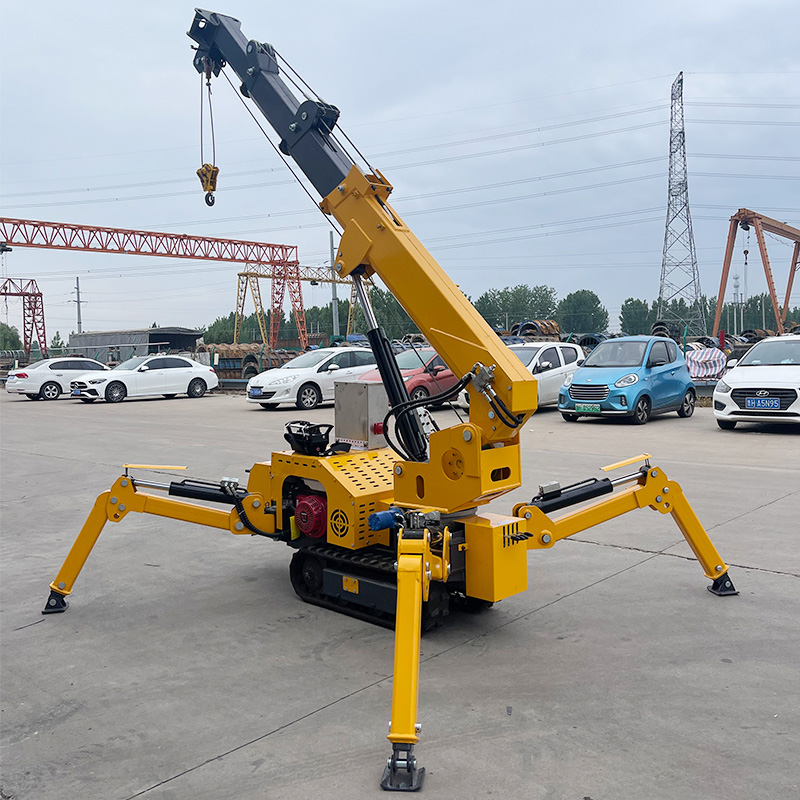

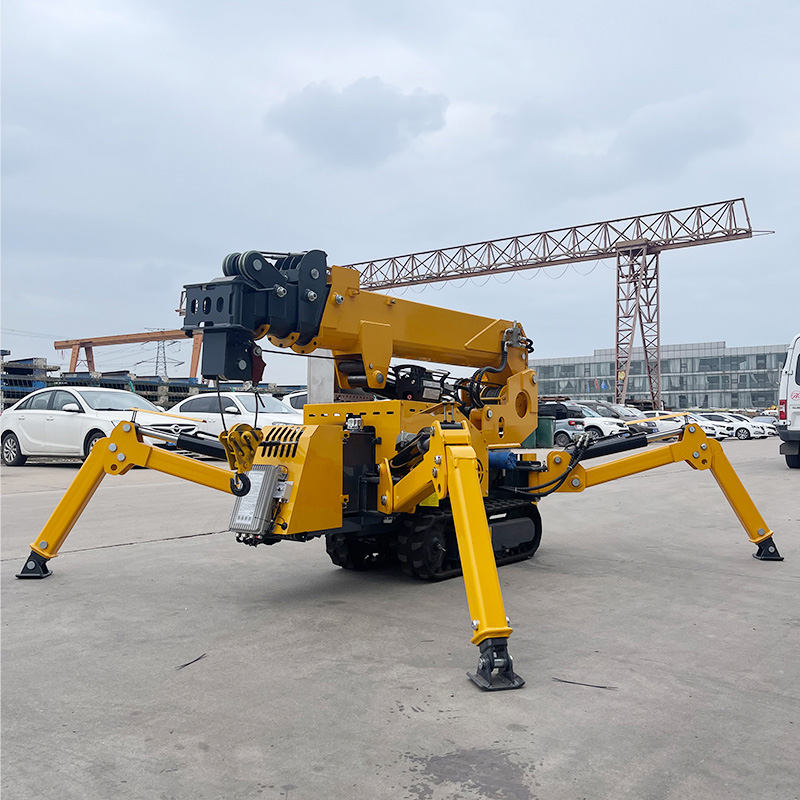

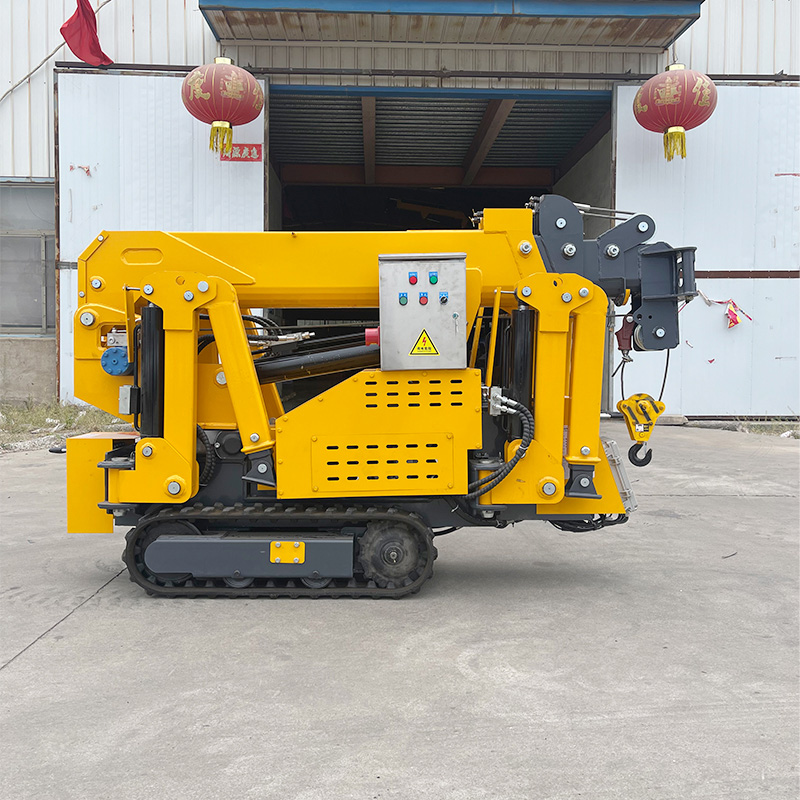

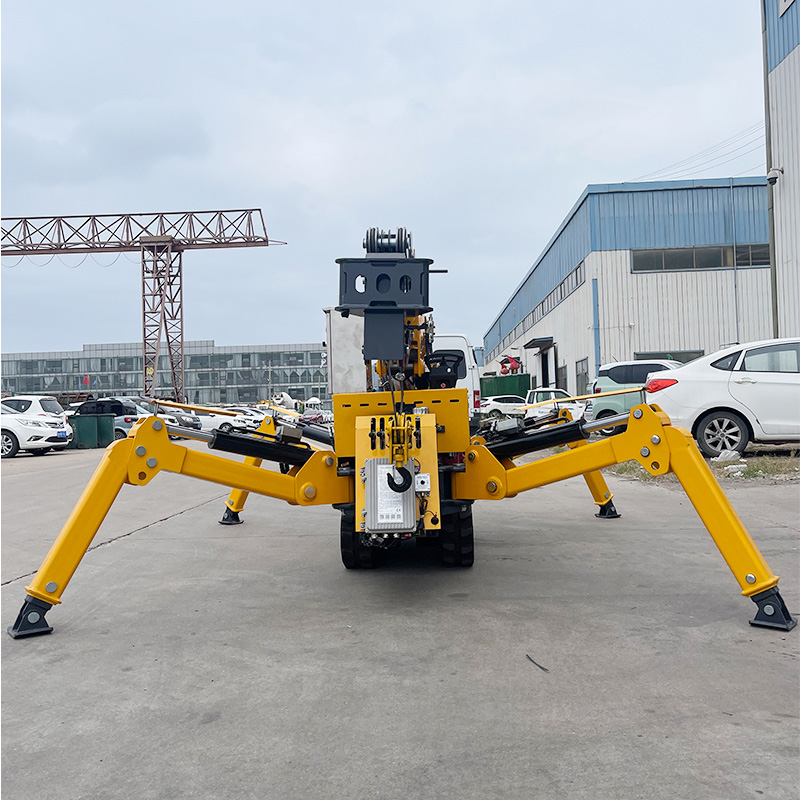

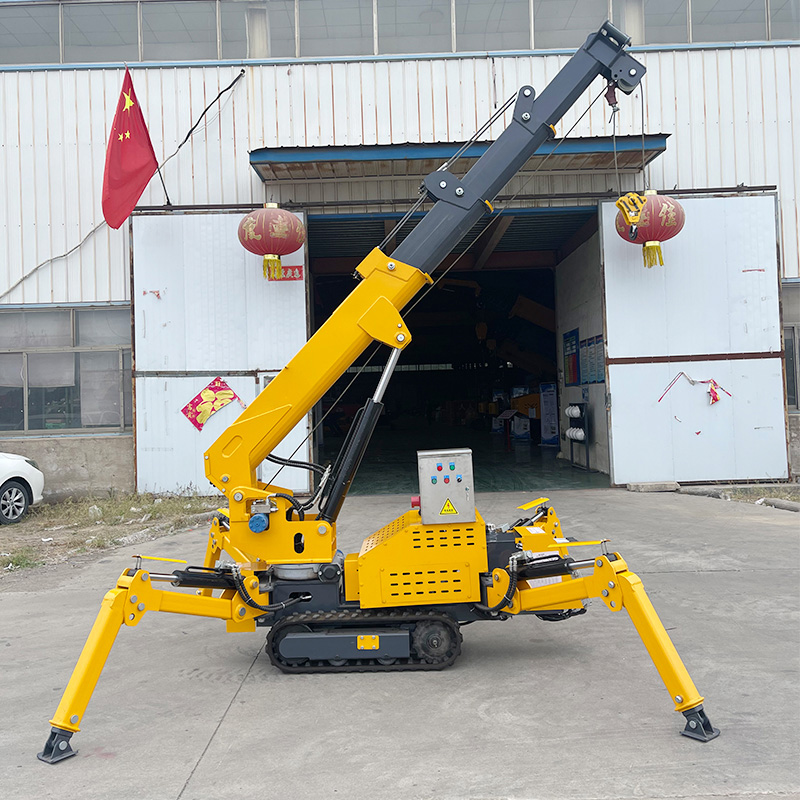

1.5 Ton Spider Crane
Superior Terrain Adaptability: Thanks to the crawler design, it has a large contact area and low ground pressure, with strong grip. It can easily handle complex terrains like mountains, muddy areas, and sandy lands, climbing slopes steadily. It has better passability than wheeled cranes, reducing work interruptions caused by terrain.
Excellent Space Adaptability: The 1.5 - ton spider crane is compact. It can access narrow alleys, indoor spaces and other areas that large cranes can hardly reach. Its spider - shaped outriggers can be extended during operation to provide stable support, and retracted during transportation, which is convenient for moving and operating in limited spaces.
Convenient and Efficient Operation: It has both electric and manual start options and supports wireless remote control. Operators can precisely control it from a distance. The optimized lifting and slewing speeds improve the efficiency of material handling.
Reliable Operating Performance: Despite a 1.5 - ton lifting capacity, its rational structural design and high - strength materials for key parts make it durable and able to withstand heavy loads. Some models are equipped with a planetary reduction slewing mechanism for smooth rotation, and the hydraulic system is accurate and stable, ensuring safe lifting operations.
Product customization is supported. You are welcome to visit our factory.
Strong Terrain Adaptability
Good Passability: With a crawler design, it can travel on complex road conditions such as swamps, riverbanks, deserts, paddy fields, snowfields, and ice surfaces.
Flexible Turning: It has a small turning radius, enabling it to operate in narrow sites and reducing the cost of road construction.
Excellent Space Adaptability
Compact Size: The overall design features a small volume and light weight, allowing it to freely enter and exit narrow alleys in the city, rural courtyards, and other small spaces. It can also be transported to indoor areas or rooftops for operation via freight elevators.
Flexible Outriggers: The spider - shaped outriggers are retracted during walking and transportation, resulting in a compact structure. When in operation, they are extended with a large span, providing high stability.
Superior Operational Performance
Diverse Drive Options: It can be powered by gasoline or a 380V motor and supports wireless remote control operation, which is convenient for use in different environments and working conditions.
Precise Control: It adopts electro - hydraulic proportional control with two control methods, manual operation and wired remote control, enabling precise control of the crane's movements.
Convenient Start - up: Equipped with both electric start and manual start, it is easy to operate.
Reliable Lifting Capacity
Appropriate Lifting Capacity: A 1.5 - ton lifting capacity can meet the hoisting needs of most regular materials and small - sized equipment in narrow spaces.
Large Working Range: It has a relatively large lifting height and amplitude. The height of some spider cranes can reach 5 - 9 meters, and the working radius can reach 5 - 8 meters.
Smooth Operation: Equipped with a planetary reduction slewing mechanism, it rotates smoothly, and the lifting and lowering speeds are stable, ensuring good working stability.
Comprehensive Safety Protection: There are marking lines and alarms for the limit of boom extension. Some models are also equipped with a hydraulic cooling system and radiator, which can effectively reduce the temperature of the hydraulic oil during operation, facilitating long - term work in high - temperature environments.
Wide Range of Applications
Construction Field: Suitable for the installation of building facades, the installation of lamps on high - rise buildings, and indoor decoration.
Power Industry: Can be used for the installation of indoor electrical equipment in substations and power inspection and maintenance.
Industrial Field: It can be used for equipment inspection and maintenance, and the installation and maintenance of pipeline laying in places such as automobile engine workshops and petrochemical plants.
Parameters
Maximum operating radius | 5.2m*1.8T |
Winch method | Hydraulic drive |
Hook rising speed | 2.3m/min |
Wire rope diameter and length | Φ8mmx20m（Max) |
Boom Form | Utype automatic 4section |
Boom Length | 2.1m-5.5m |
BoomAngle/Time | 0-70°/50sec |
SlewAngle/Speed | 0-360° |
Driving Mode | Hydraulic motor |
Walking Speed | 0~0.3km/h |
| Gradeability | 20° |
| GroundLength × Wiidth | 1110mm*180mm |
| Engine Model | Gx390 |
| Displacement | 0.389L |
| power | 9.6kw |
| Startup method | Electric start |
| fuel | Gasoline |
| Outrigger | Manual |
| Walk | Manual |
| Dimensions（Length×Width× Heigh） | 2260mm*600mm*1470mn |
| Vehicle wight | 1170kg |
Details

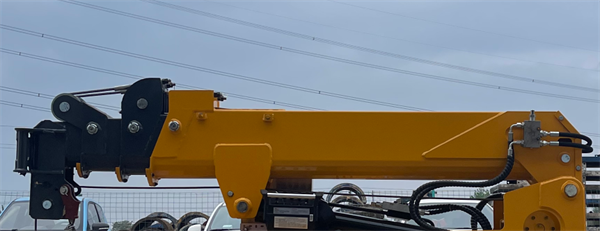

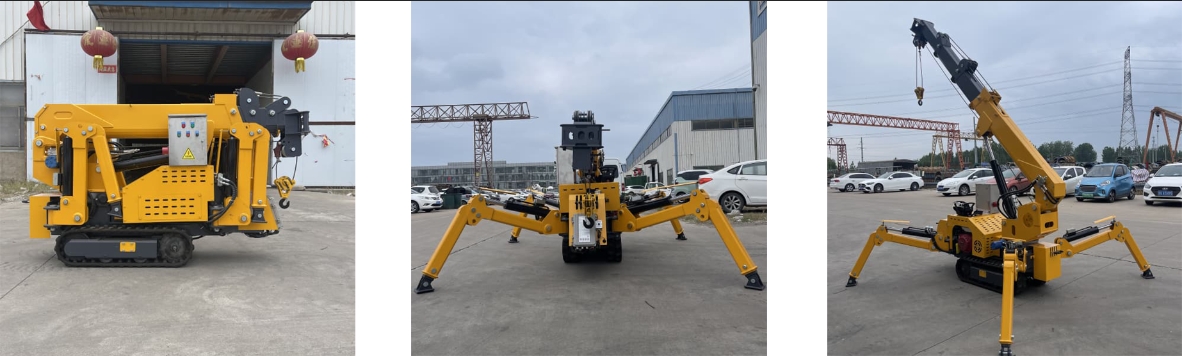

| Crane photos |  |

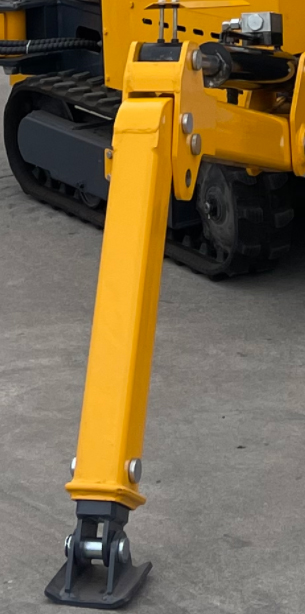

 | Spider Legs |

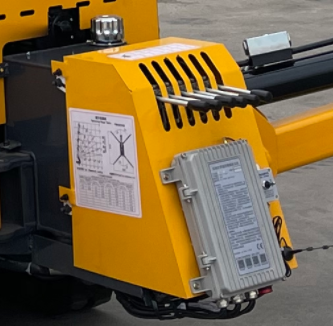

| Operation panel |  |

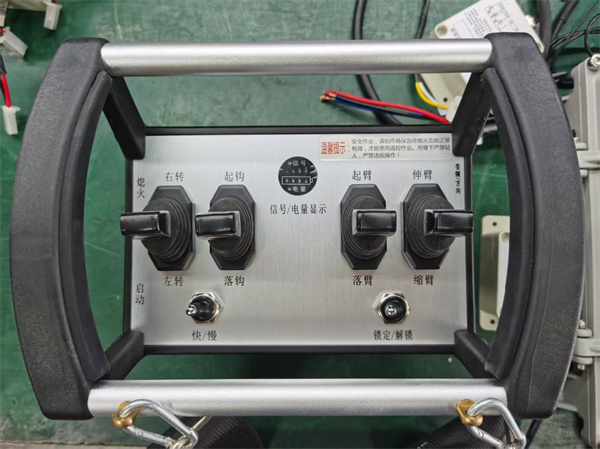

 | Remote Control |
