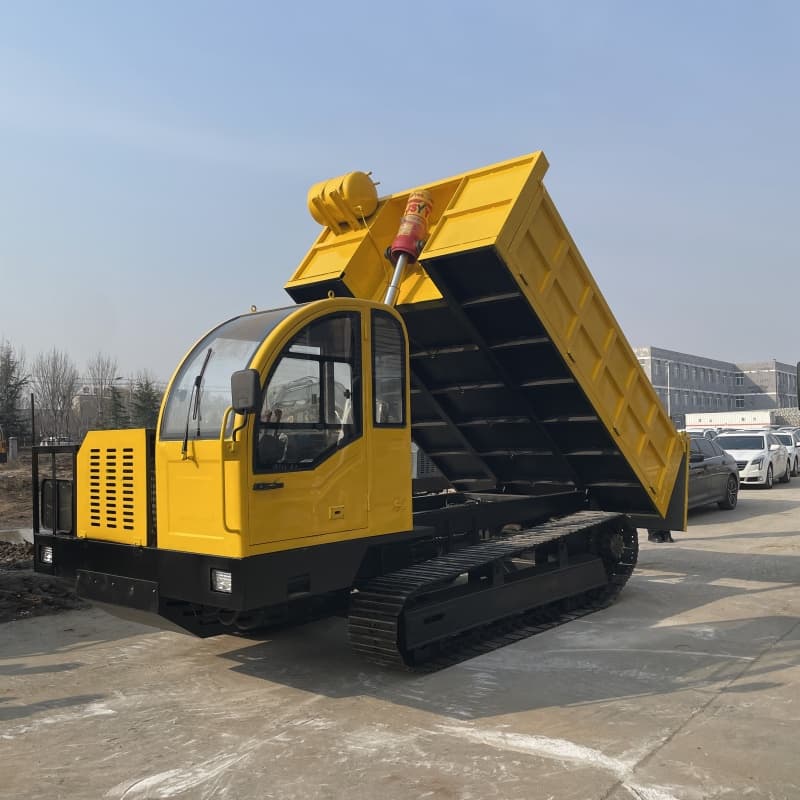

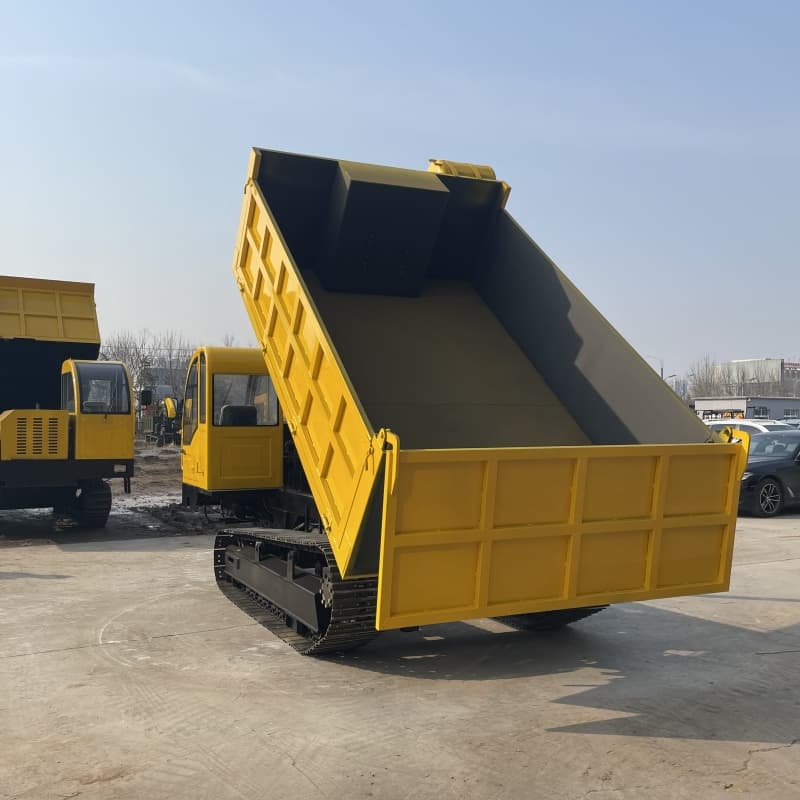

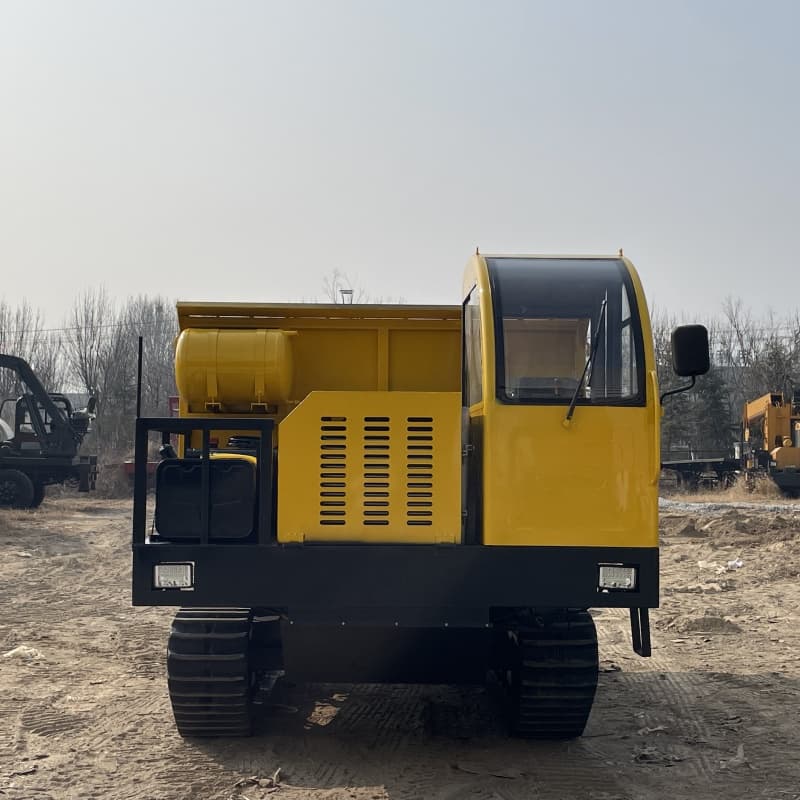

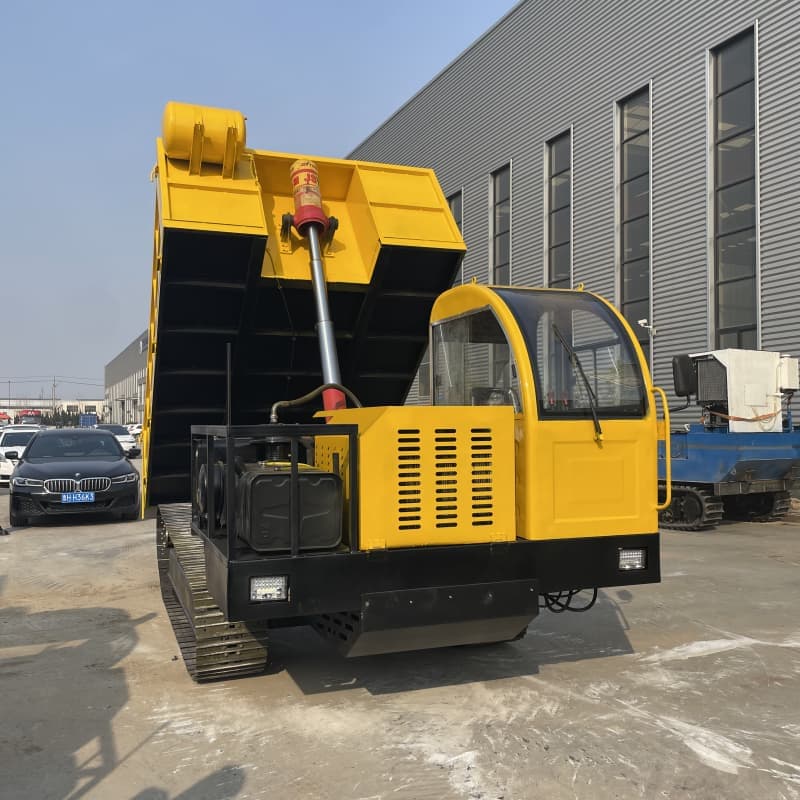

15 Ton Steel Crawler Dump Truck
This crawler transport vehicle can move freely on muddy and icy roads. It features a tipping design, crawler walking, and is driven by a motor, which significantly extends the operating power. The specific dimensions can be customized according to requirements. It has a strong load-bearing capacity and climbing ability, and is easy to operate and maintain.
15-Ton Crawler Transporter – The All-Terrain Heavy-Duty Hauling Expert, Conquering Extreme Working Conditions!
Core Advantages:
✅ Military-Grade Load Capacity: With a massive 15-ton load rating, featuring a high-strength steel cargo bed and reinforced chassis, engineered specifically for heavy-duty transportation of ore, building materials, and more.
✅ All-Terrain Dominator: Steel crawlers combined with a 30° slope-climbing ability enable effortless navigation through extreme terrains, including swamps, snowy slopes, and sandy areas.
✅ Mining-Grade Power: Turbocharged engine paired with an intelligent hydraulic system ensures smooth climbing even under heavy loads.
✅ 10-Minute Rapid Unloading: 60° hydraulic self-dumping mechanism unloads cargo 50% faster than traditional models.
This machine is simple to operate and convenient to control. The standardized design not only enables quick operation and cost savings but also endows it with outstanding climbing ability, making it particularly suitable for arduous tasks.
Parameters
Engine Model | YUCHAI 4108 |
Engine Power | 118KW(160HP) |
Emission Standard | Euro 2 |
Transmission Model | GULI |
Gear | 5 forward gears, 1 reverse gear，with high and low speed |
Chassis Width | 2200mm |
| Rear Axle Type | 153 |
Track width | 400mm |
| Track material | Steel track |
| Track length | 3500mm |
Carriage size | 3500*2200*800mm (Support Customization) |
| overall dimension | 5500*2200*2450mm |
Load capacity | 15ton |
Unloading Mode | Hydraulic Tipping |
Machine weight | 5800kg |
Traveling Speed | 3-30km/h |
Climbing Angle | 35° |
Starting Method | Electric Start |
Battery | 24v |
Details
Chassis |
|
| Diesel engine (190HP) |
Hydraulic tipping bucket |
|
 | Operation panel |
