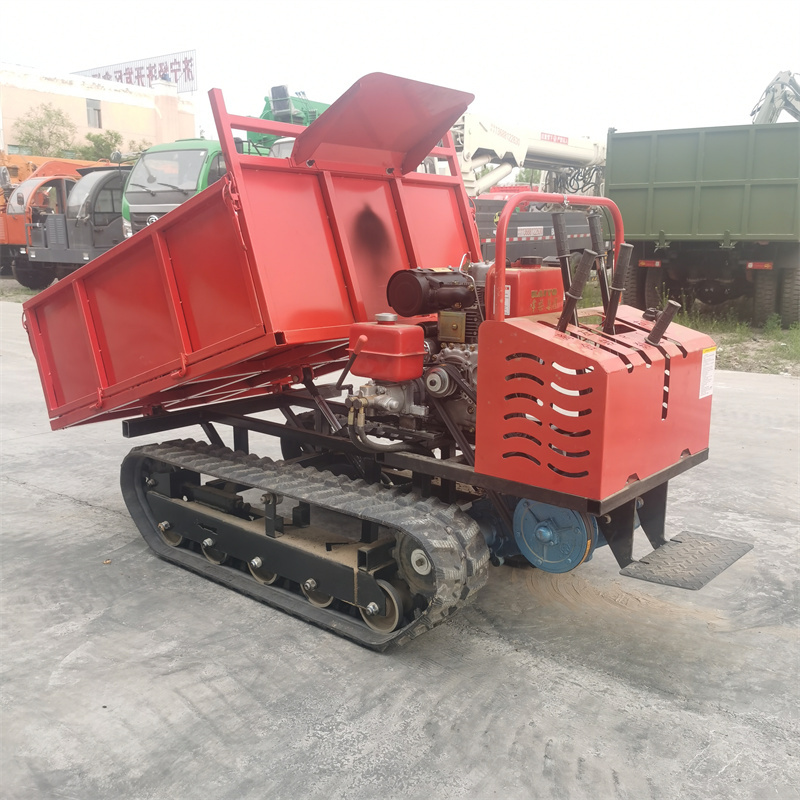

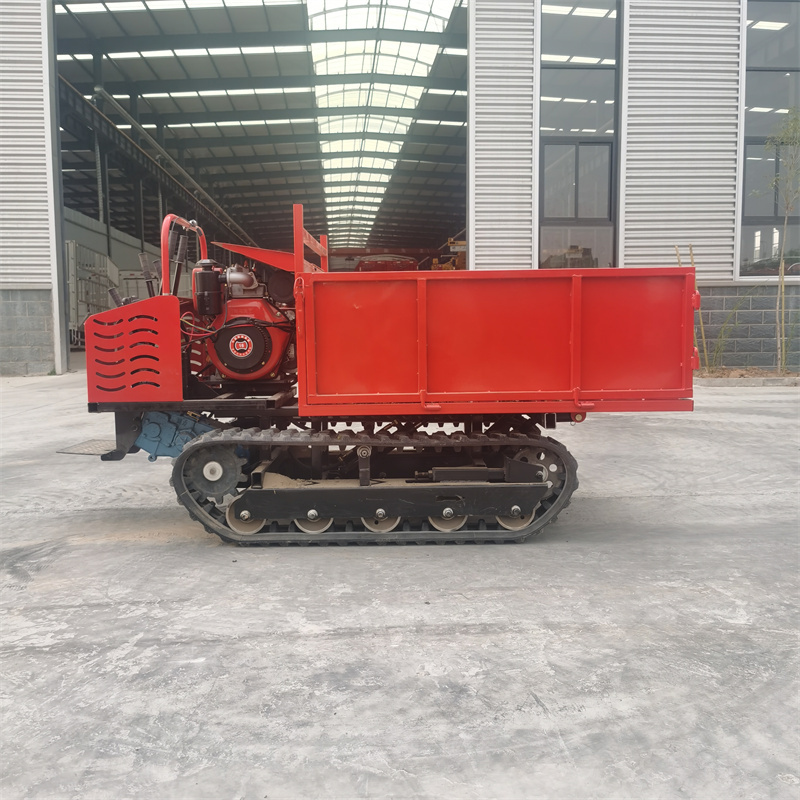

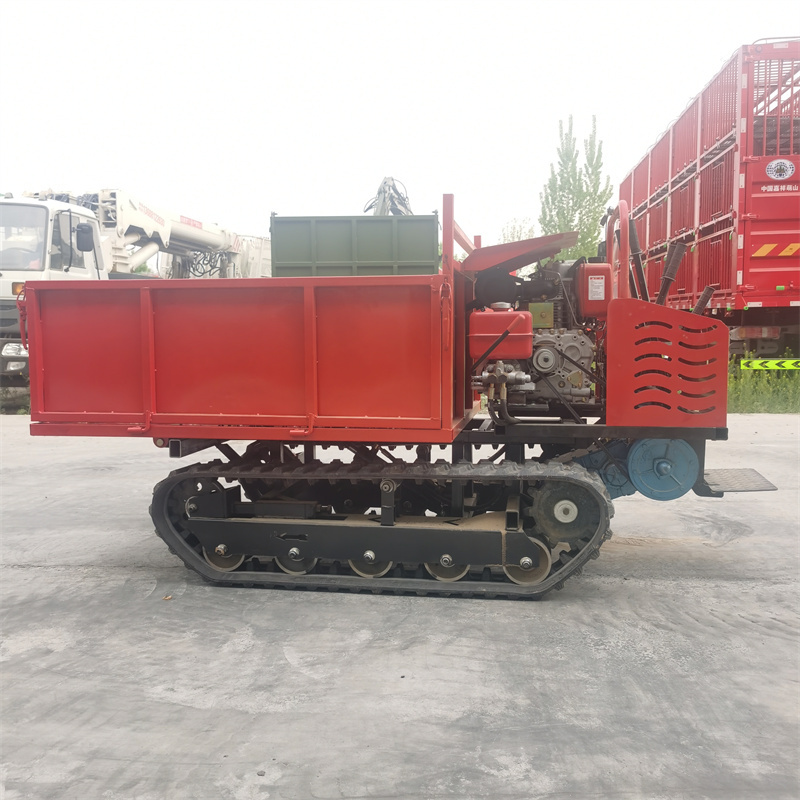

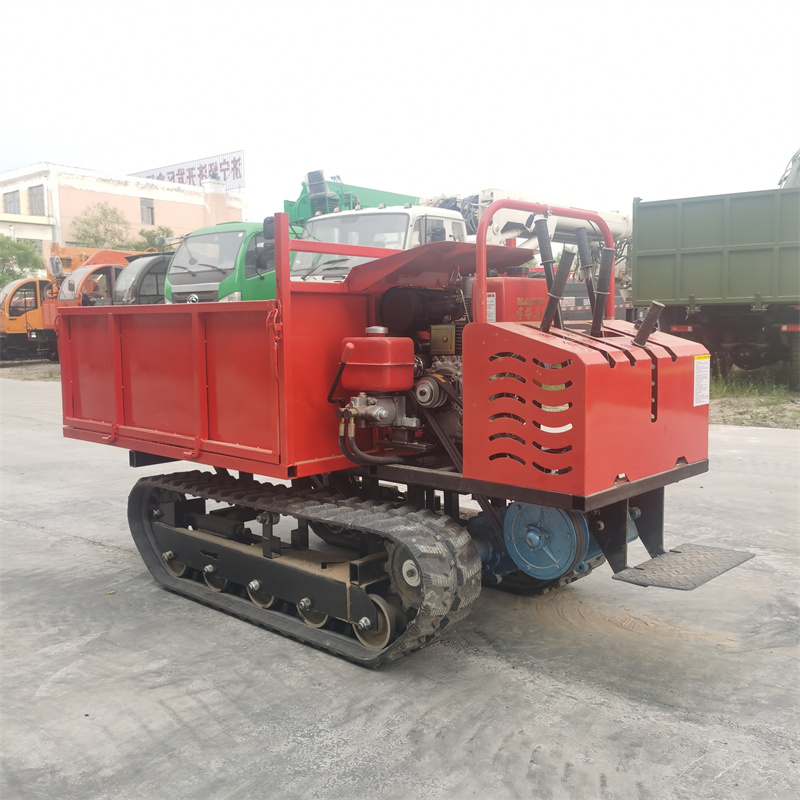

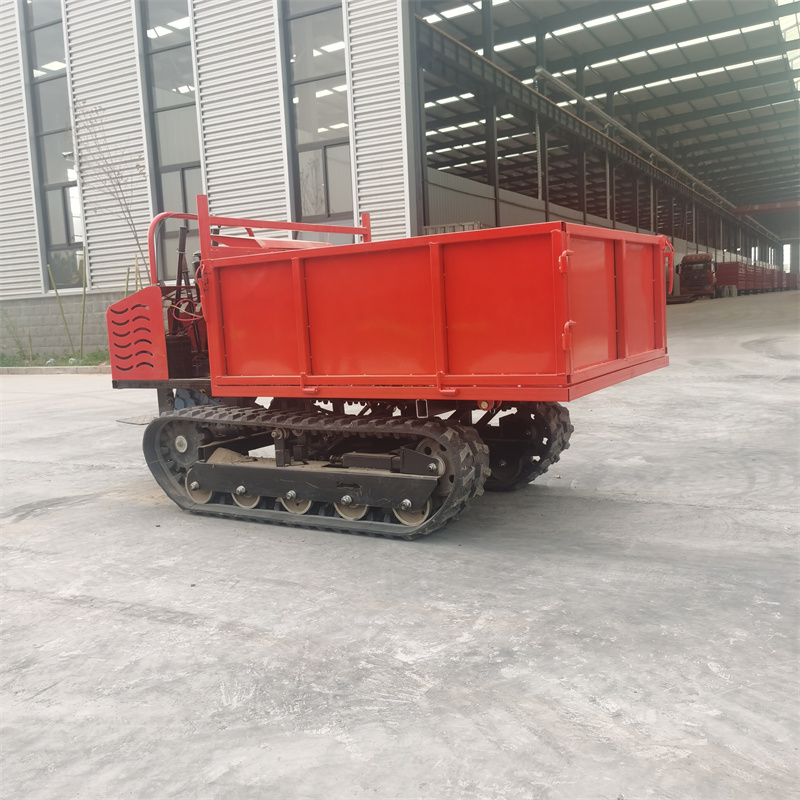

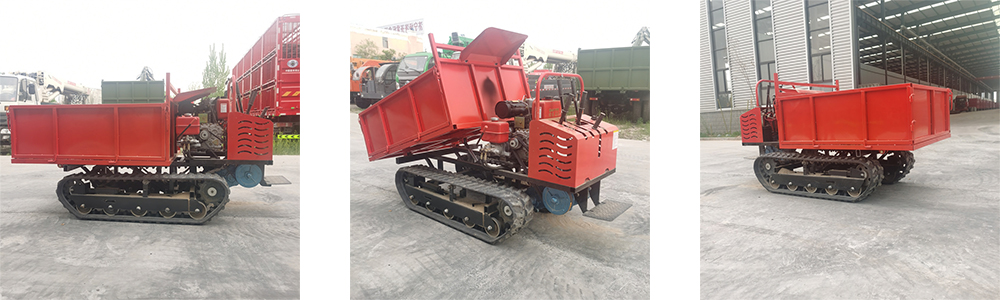

1Ton Crawler Dumper
Strong Off-Road Capability
Equipped with a tracked system, the 1-ton tracked dump truck can easily navigate through complex terrains and harsh environments, making it ideal for muddy, sandy, or sloped areas.Efficient Loading and Unloading
With its self-dumping design, the truck can quickly and easily load and unload materials, improving operational efficiency, especially in construction sites and mining areas.Compact Size and Flexibility
The compact body and high maneuverability allow the 1-ton tracked dump truck to operate freely in tight spaces, making it perfect for urban construction and narrow job sites.Low Maintenance Costs and High Reliability
With a simple design and easy maintenance, this model is built with durable materials, ensuring a long service life and low failure rate, which helps reduce operational costs.
1. Exceptional Off-Road Capability
The tracked design allows the truck to easily navigate difficult terrains such as mud, sand, and slopes, making it ideal for construction, mining, and other challenging environments.
2. Low Operating and Maintenance Costs
With its simple design and durable components, the 1-ton tracked dump truck requires less maintenance and offers lower operating costs, delivering a high return on investment (ROI).
3. Efficient Loading and Unloading
The self-dumping feature allows for quick and easy loading/unloading, saving time and labor costs, and improving overall project efficiency.
4. Compact and Maneuverable
Its compact size makes it highly maneuverable in tight spaces, such as narrow construction sites or urban areas, increasing its versatility across different job sites.
5. High Durability
Built with high-quality materials, the truck is designed to withstand harsh conditions, ensuring a long lifespan and reducing the frequency of repairs.
Parameters
Engine Model | CHANGCHAI 192 |
Engine Power | 9.4hp |
Emission Standard | Euro 2 |
Transmission Model | GULI 15 |
Gear | 3+1 |
Chassis Width | 850mm |
Crawler Model | 230*72*46 |
Cabin Size | 1400*1000*500mm (Support Customization) |
| overall dimension | 2200*1000*1300mm |
Load capacity | 1 ton |
Unloading Mode | Hydraulic Tipping Bucket Tipping |
machine weight | 550kg |
Traveling Speed | 0-6km/h |
Climbing Angle | 35° |
Starting Method | Electric Start |
Battery | 24v |
Details
chassis |
|
| Diesel engine (changchai) |
Hydraulic tipping bucket |
|
 | Operation panel |
